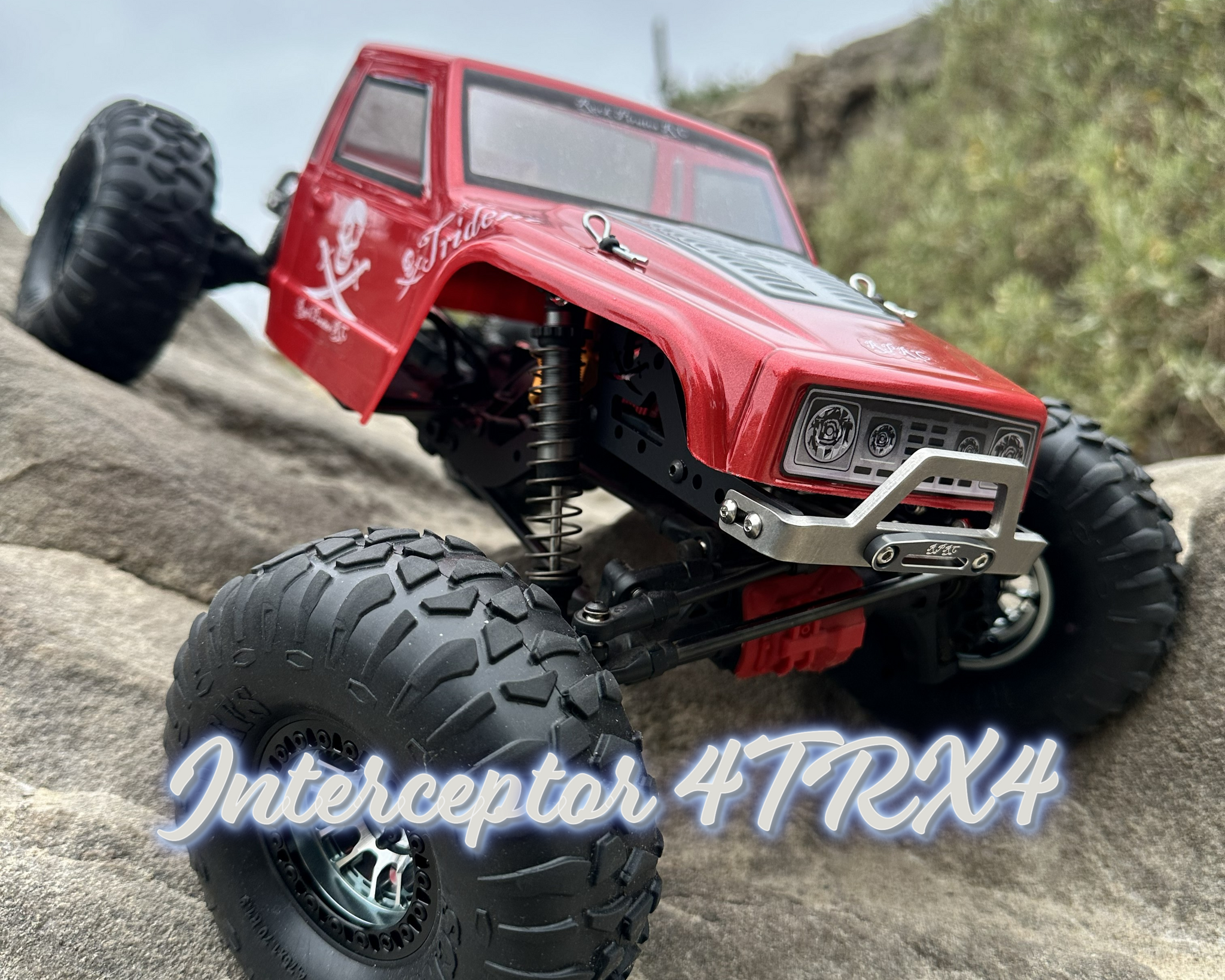

INTERCEPTOR CHASSIS 4TRX4
The Most Versatile High-Performance Chassis On The Market.
Please Read Carefully!
The Interceptor 4TRX4 Chassis is designed to allow the TRX4 Sport to bolt into a TRUE HIGH PERFORMANCE flat rail chassis. Many Rock Pirates RC (RPRC) upgrade parts are also compatible with the Interceptor 4TRX4 Chassis.
IMPORTANT NOTES:

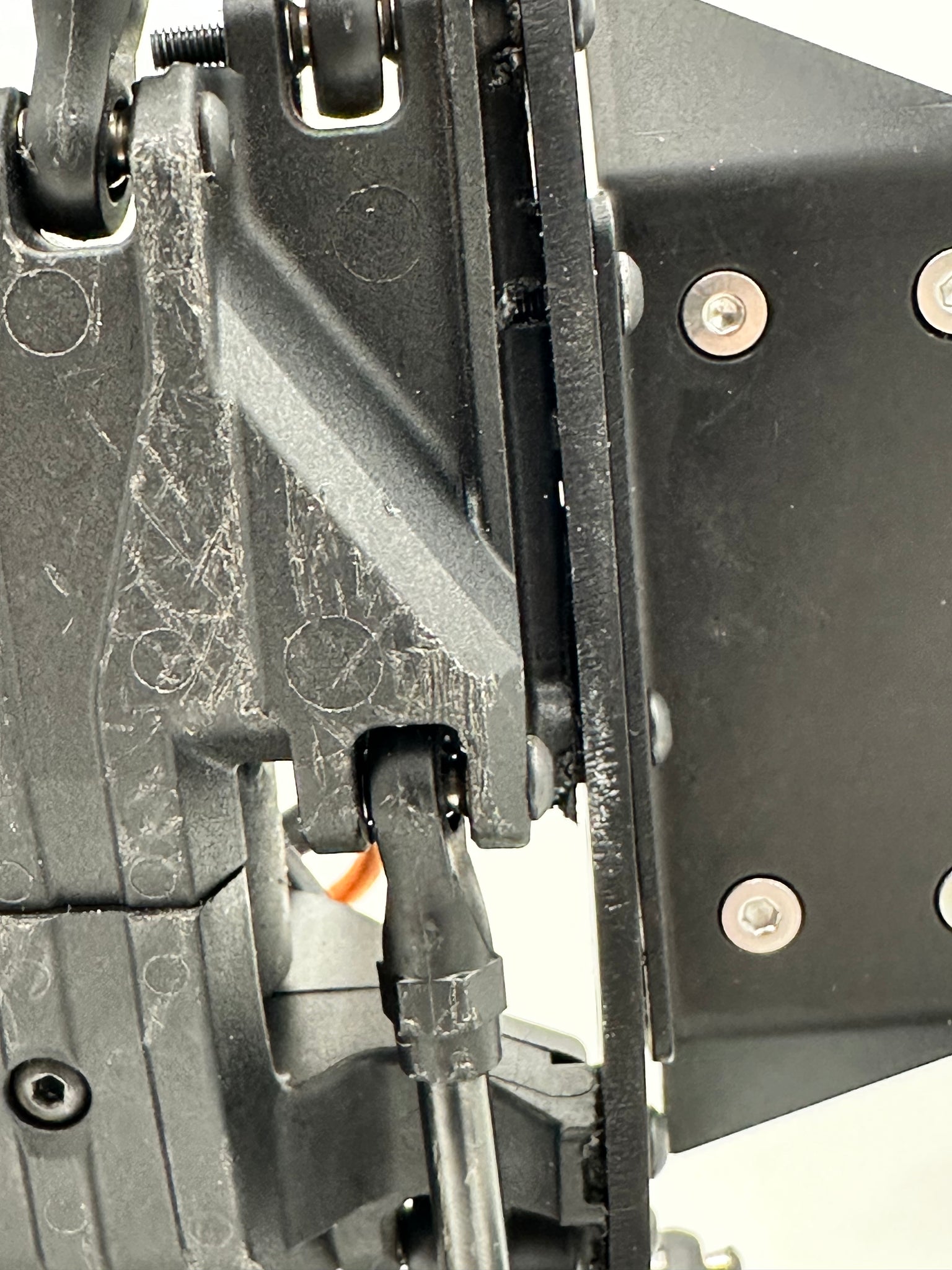

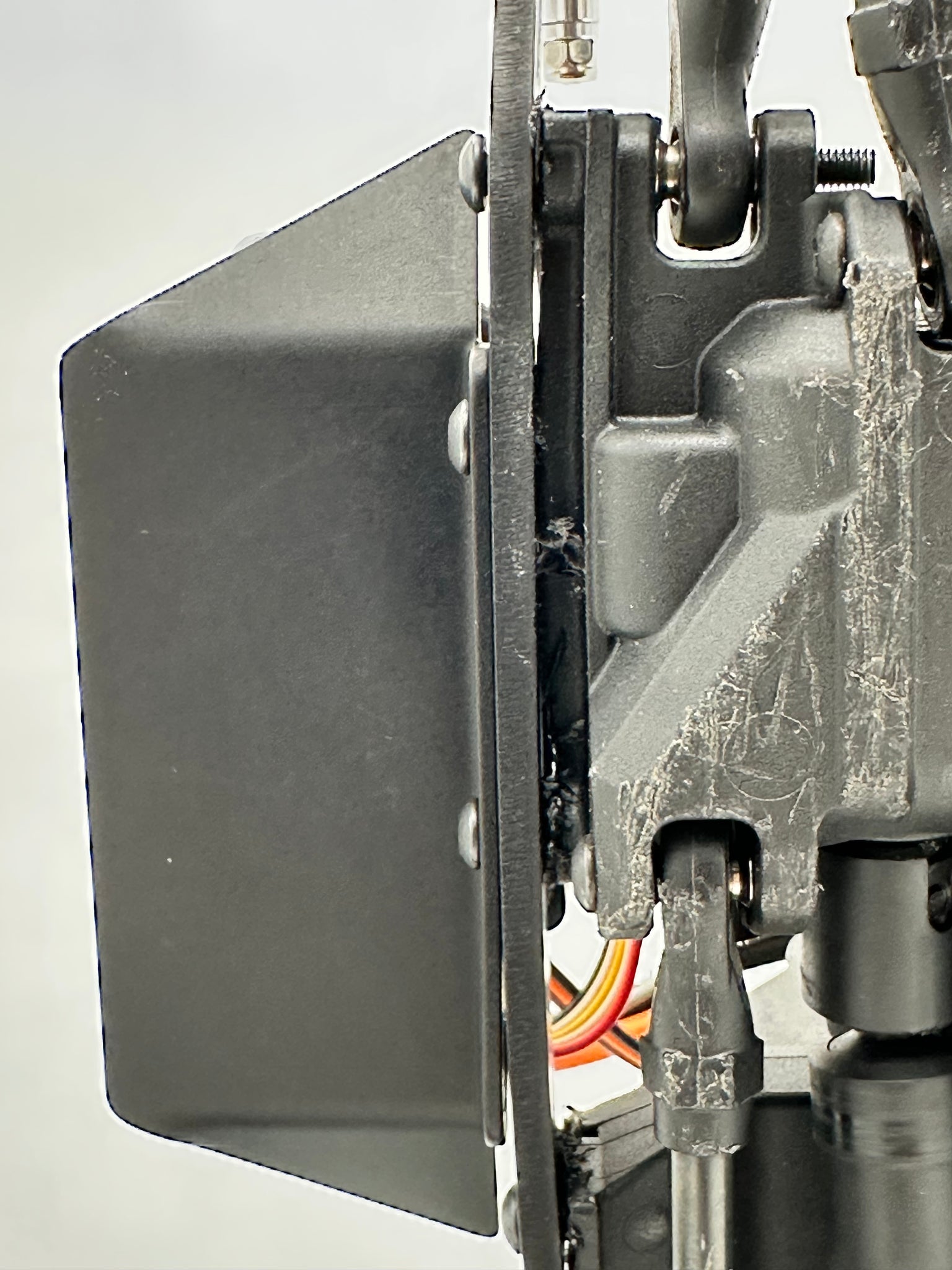

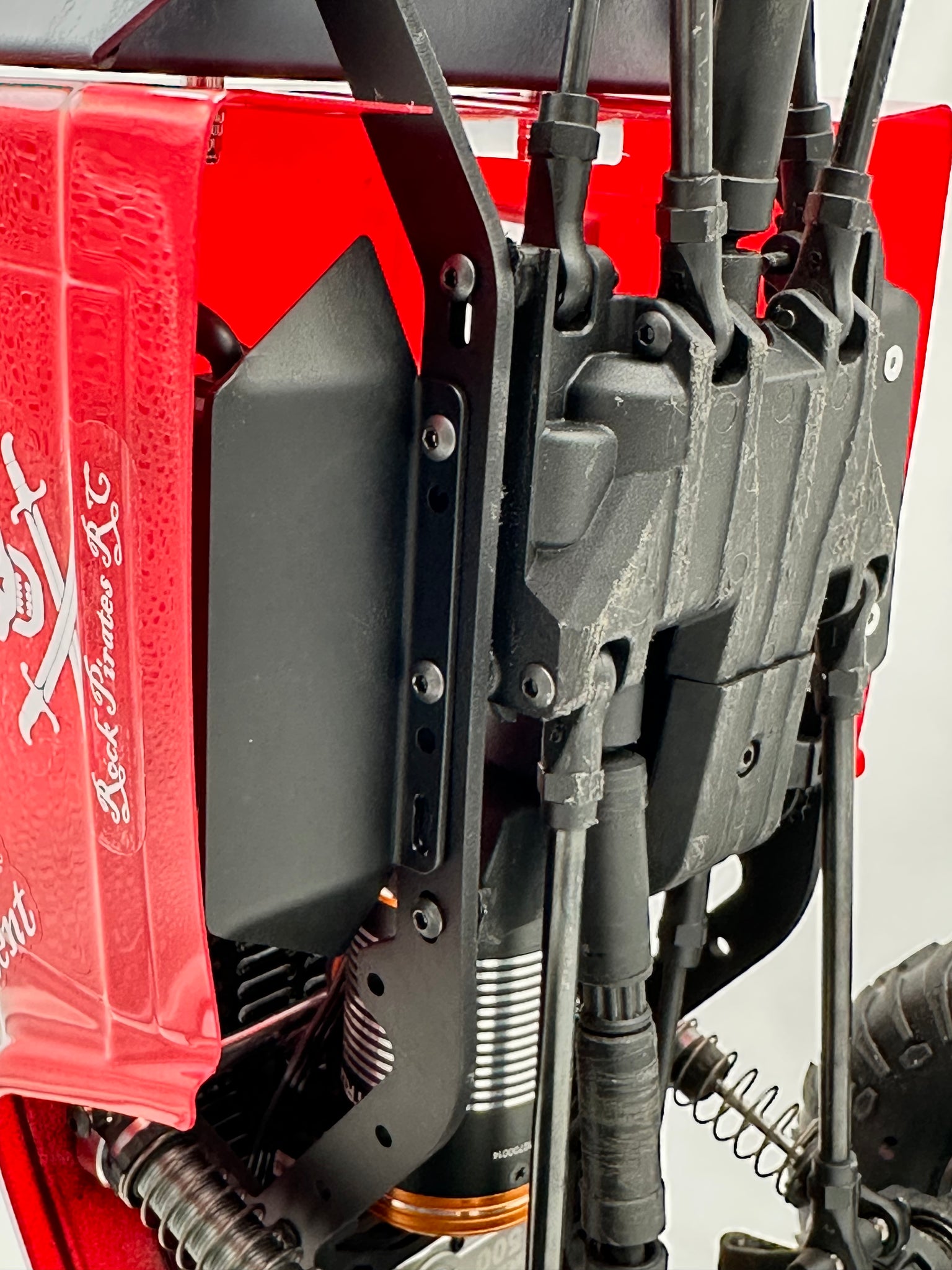

The Stock Skid will need to be modified by removing the extruding plastic on the sides of the skid and forward transmission mount; This is the portion that inserts into the stock frame rails. This will require a small saw, band saw or Dremel Tool to cut these portions off.

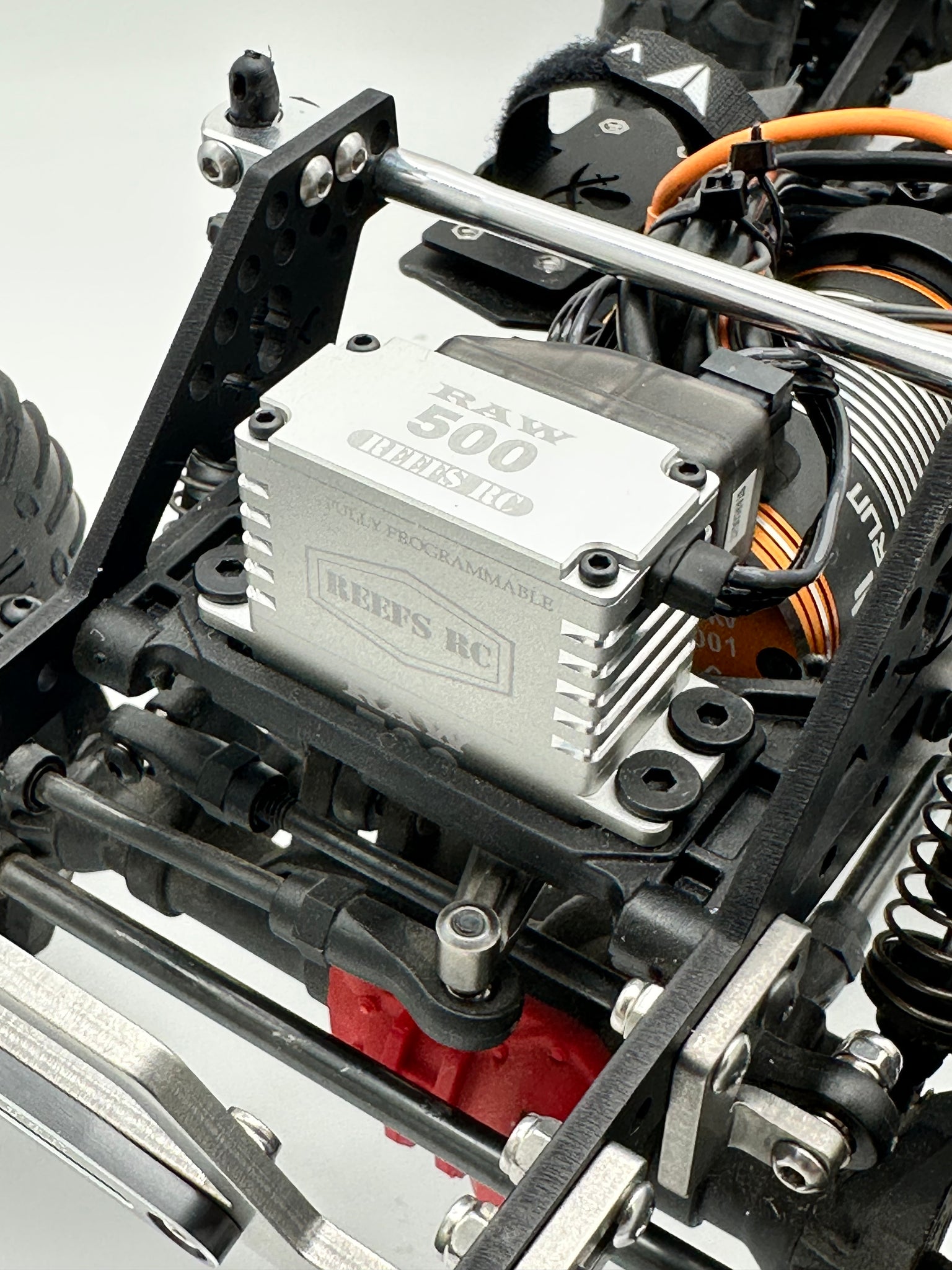

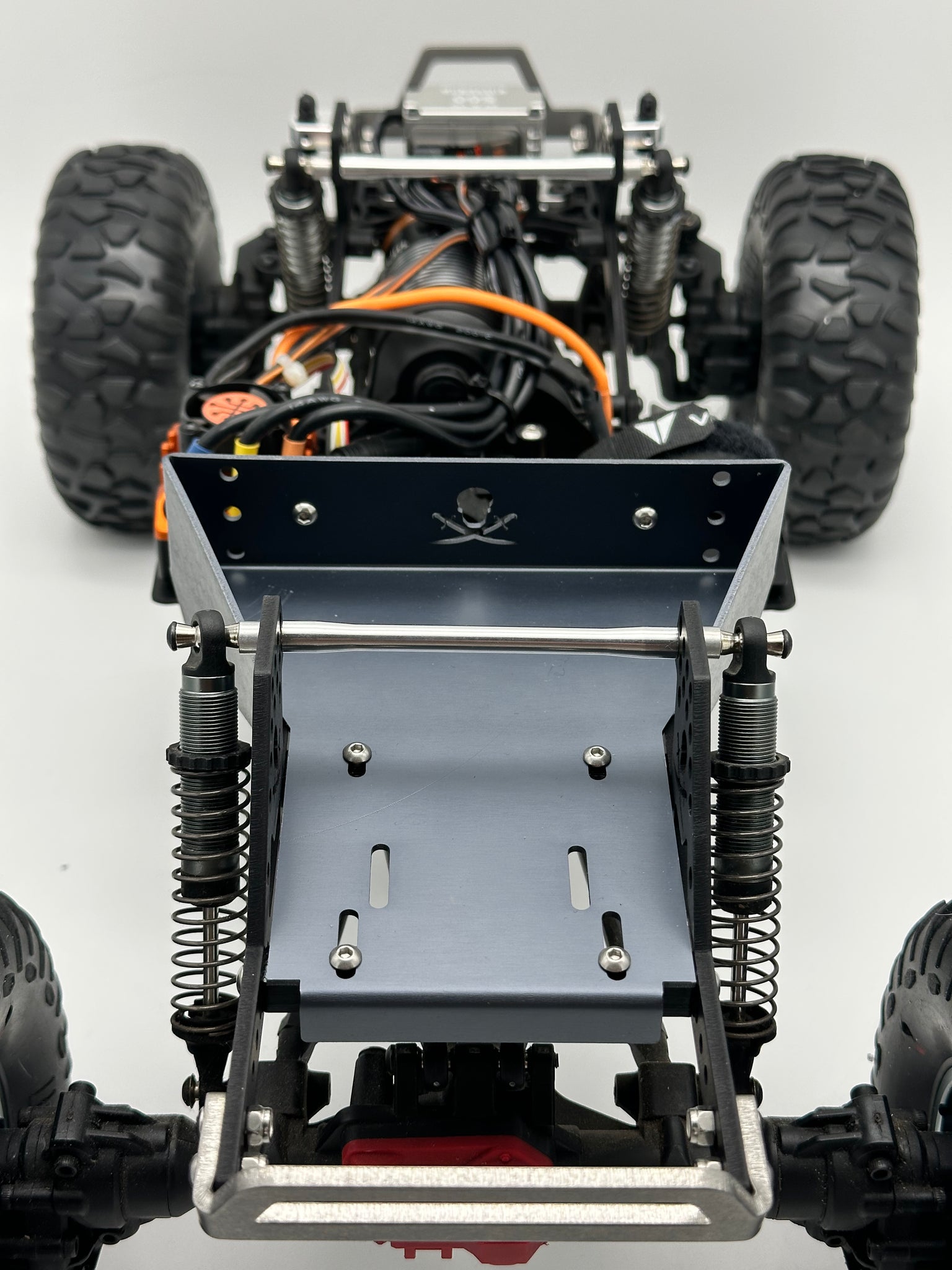

After trimming the skid sides as noted above, mount the Chassis Rails to the skid first, then PINCH the rails and install your crossmembers and servo tray. It is normal for the rails to have to flex and bend in order for the crossmembers to be installed. Work around the Chassis, tightening the screws a little at a time until all are snug. The stock TRX4 Sport Servo Tray will fit perfect!
We HIGHLY recommend watching the RC Crawler Build Beginner Tips & Tools Video Below prior to purchasing this chassis.
SPECIAL FEATURES:

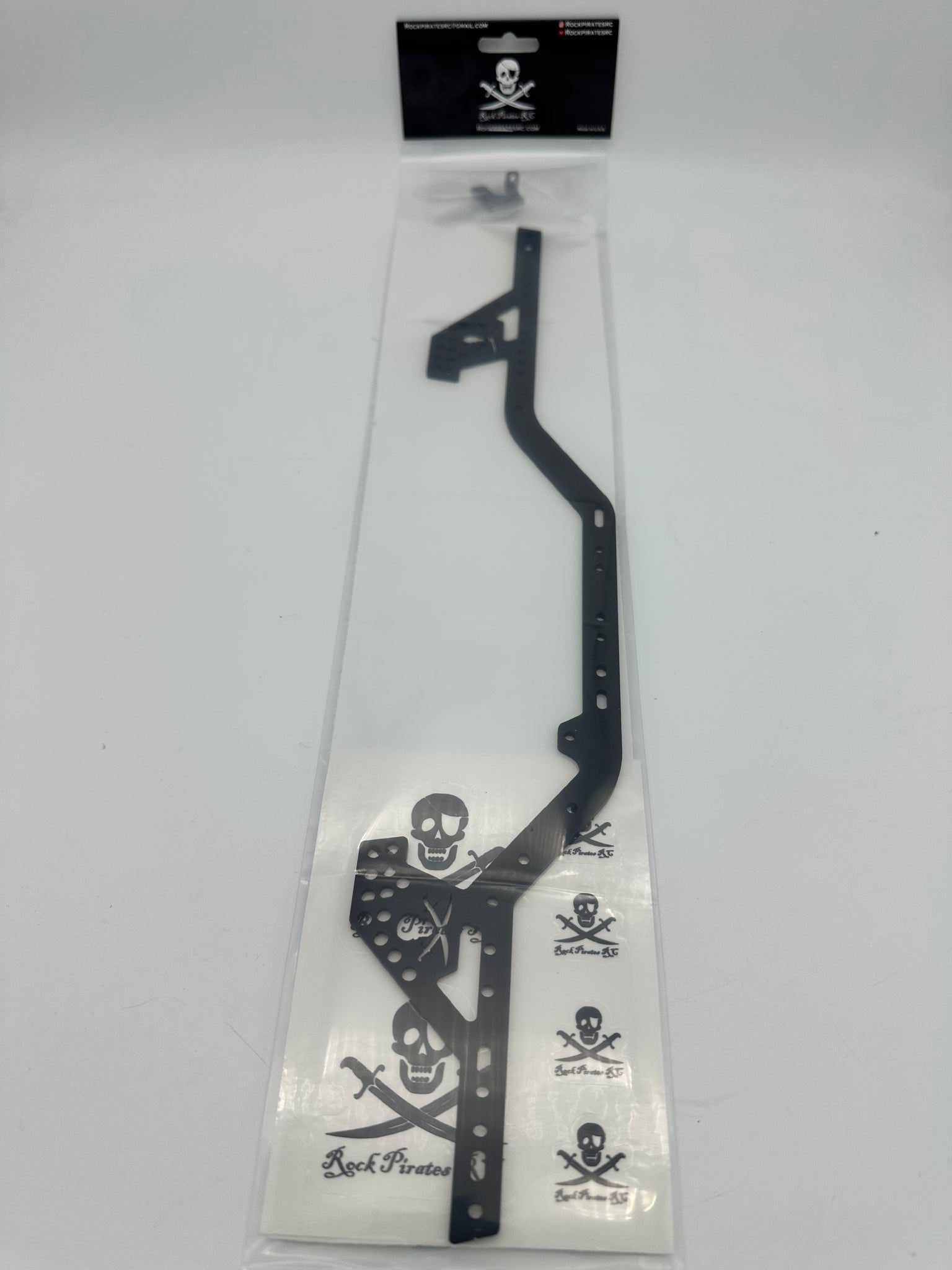

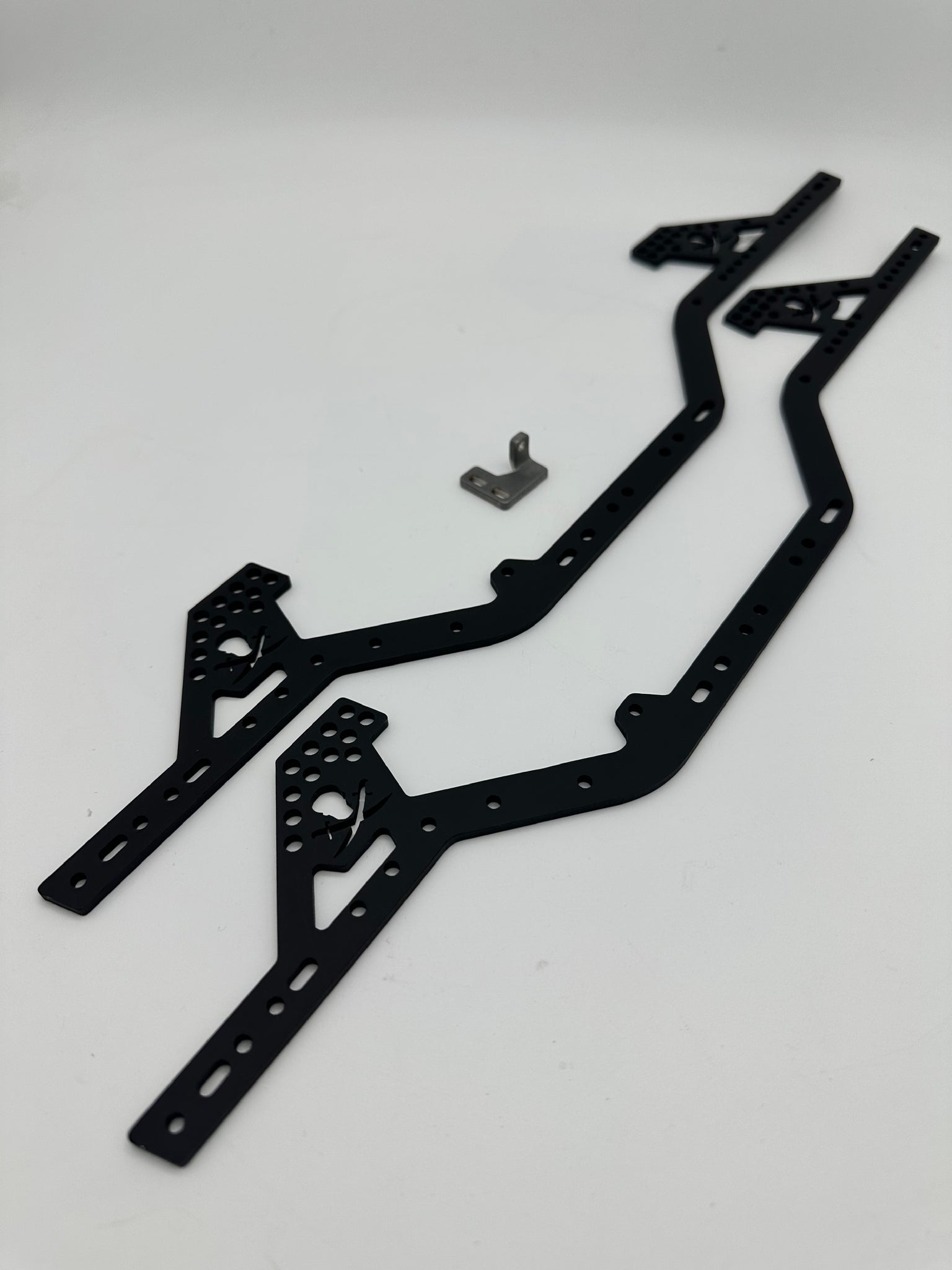

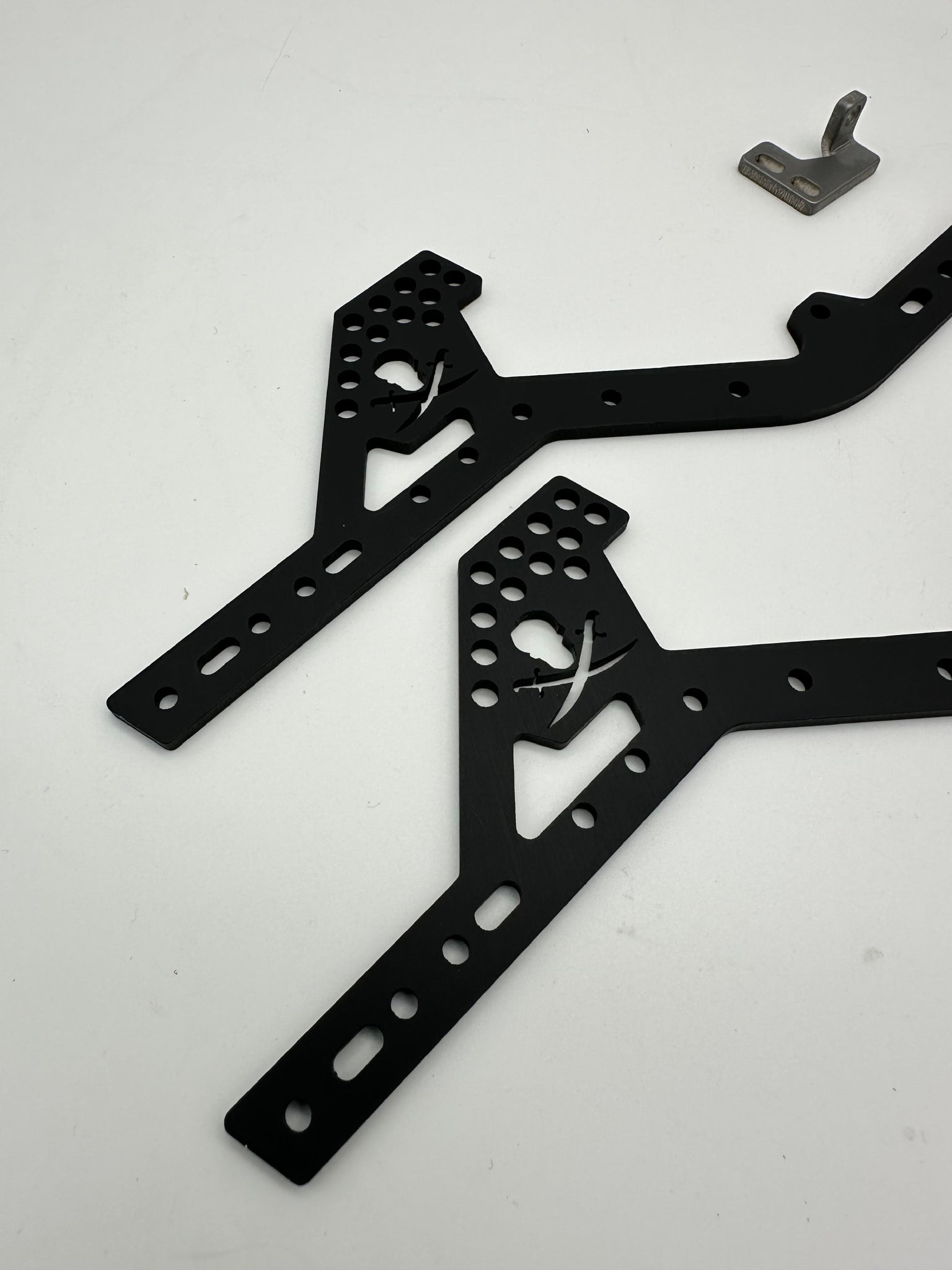

2 Anodized Aircraft Aluminum Frame Rails (3.6 oz).

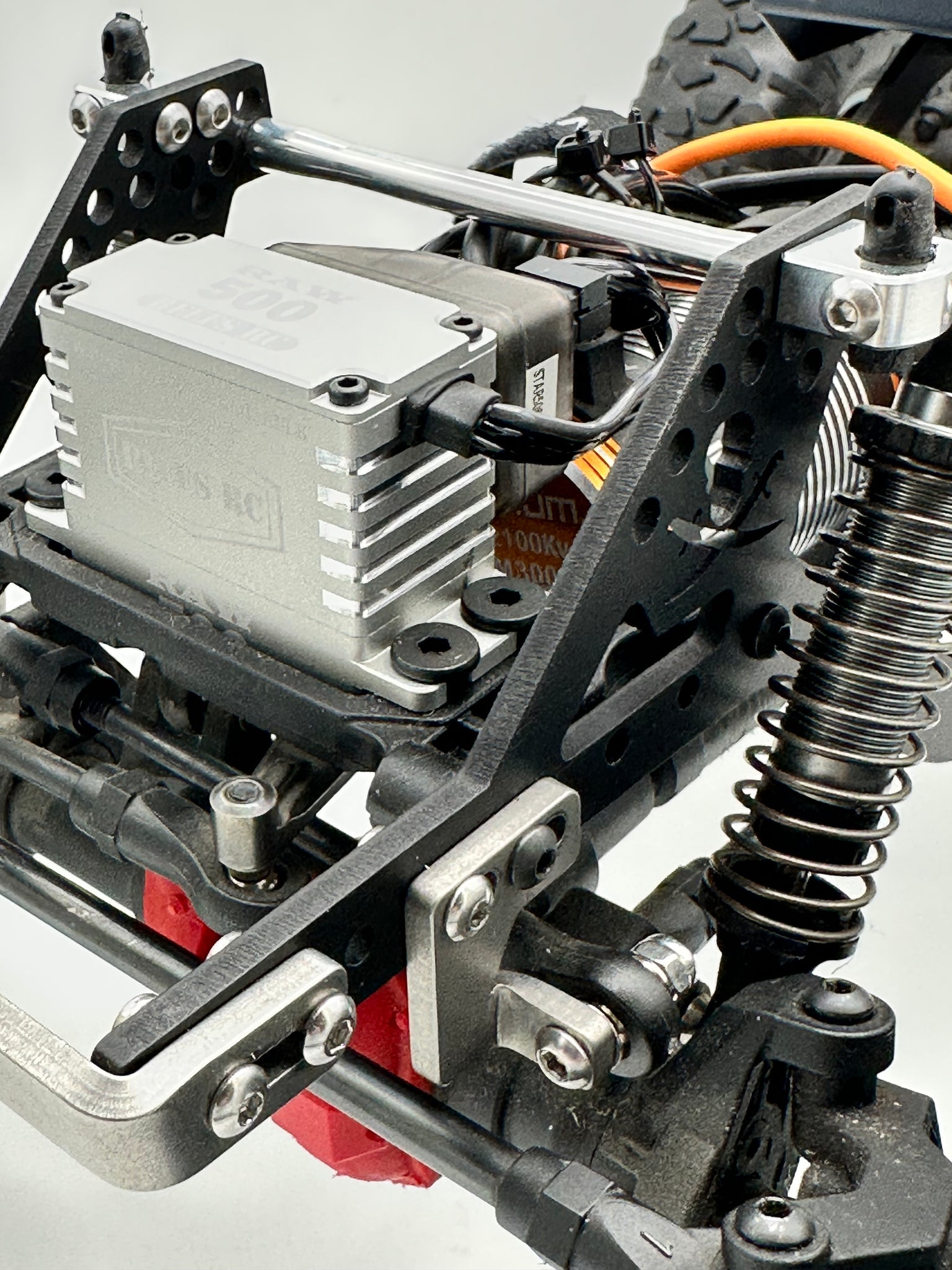

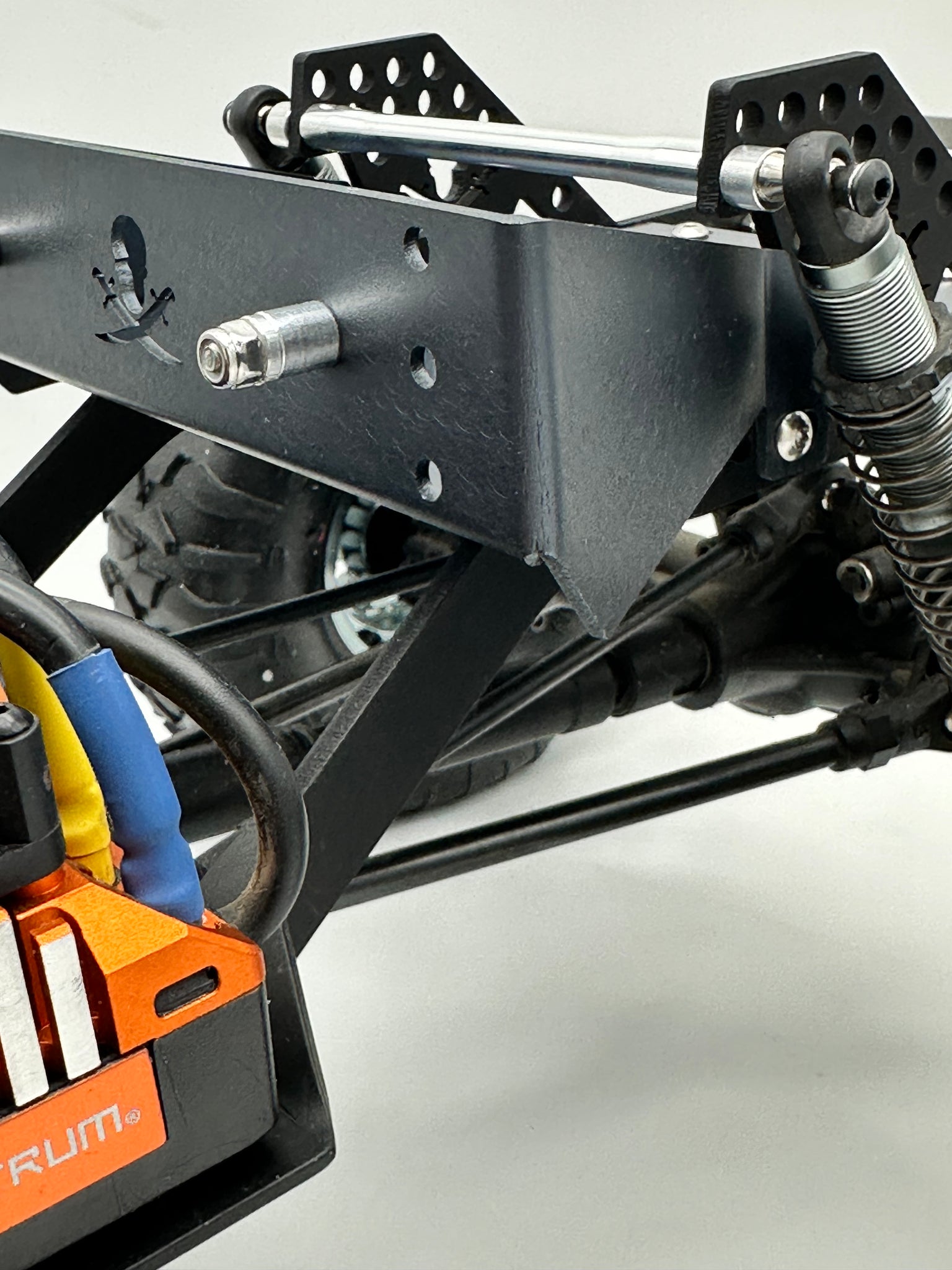

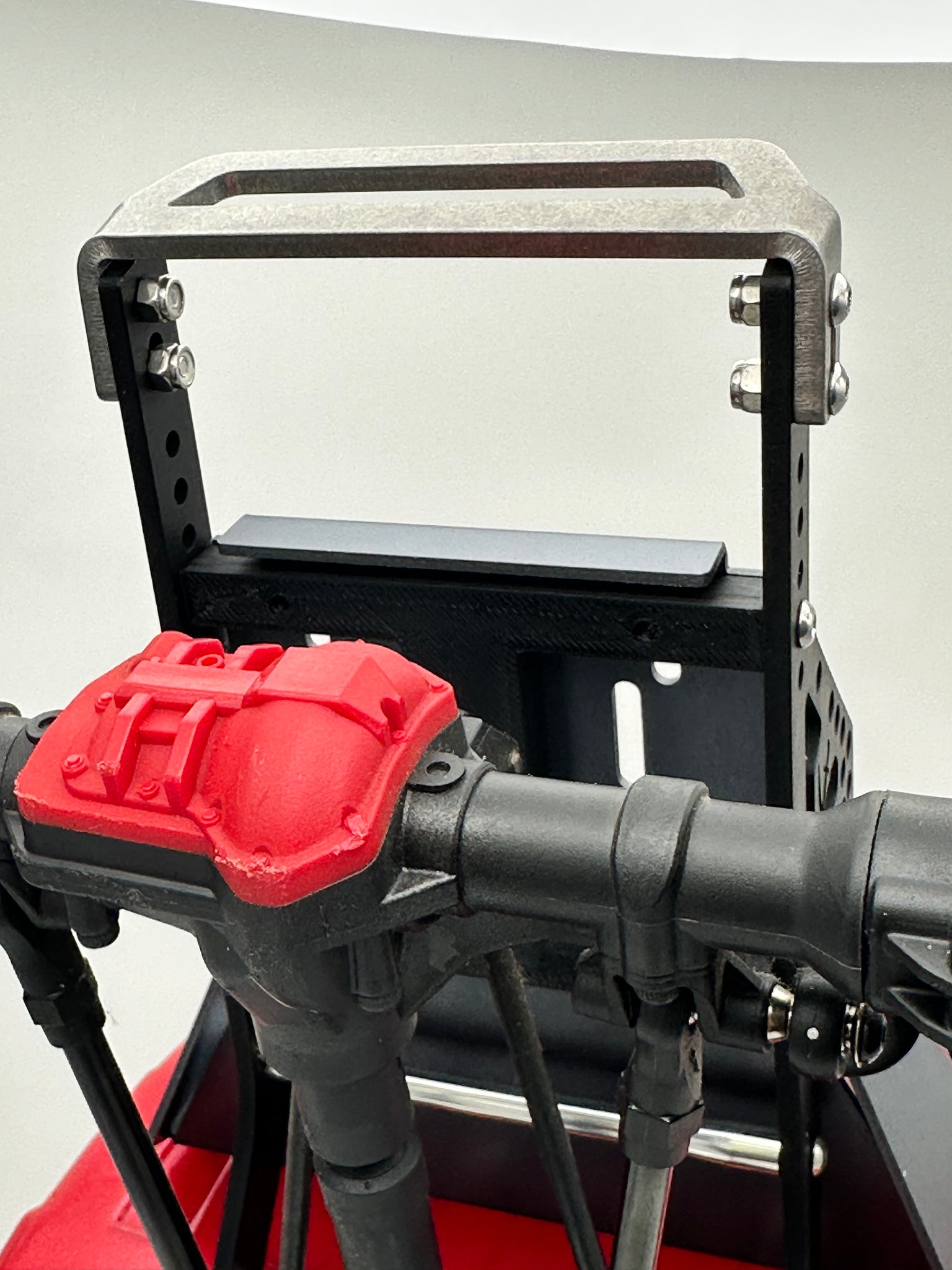

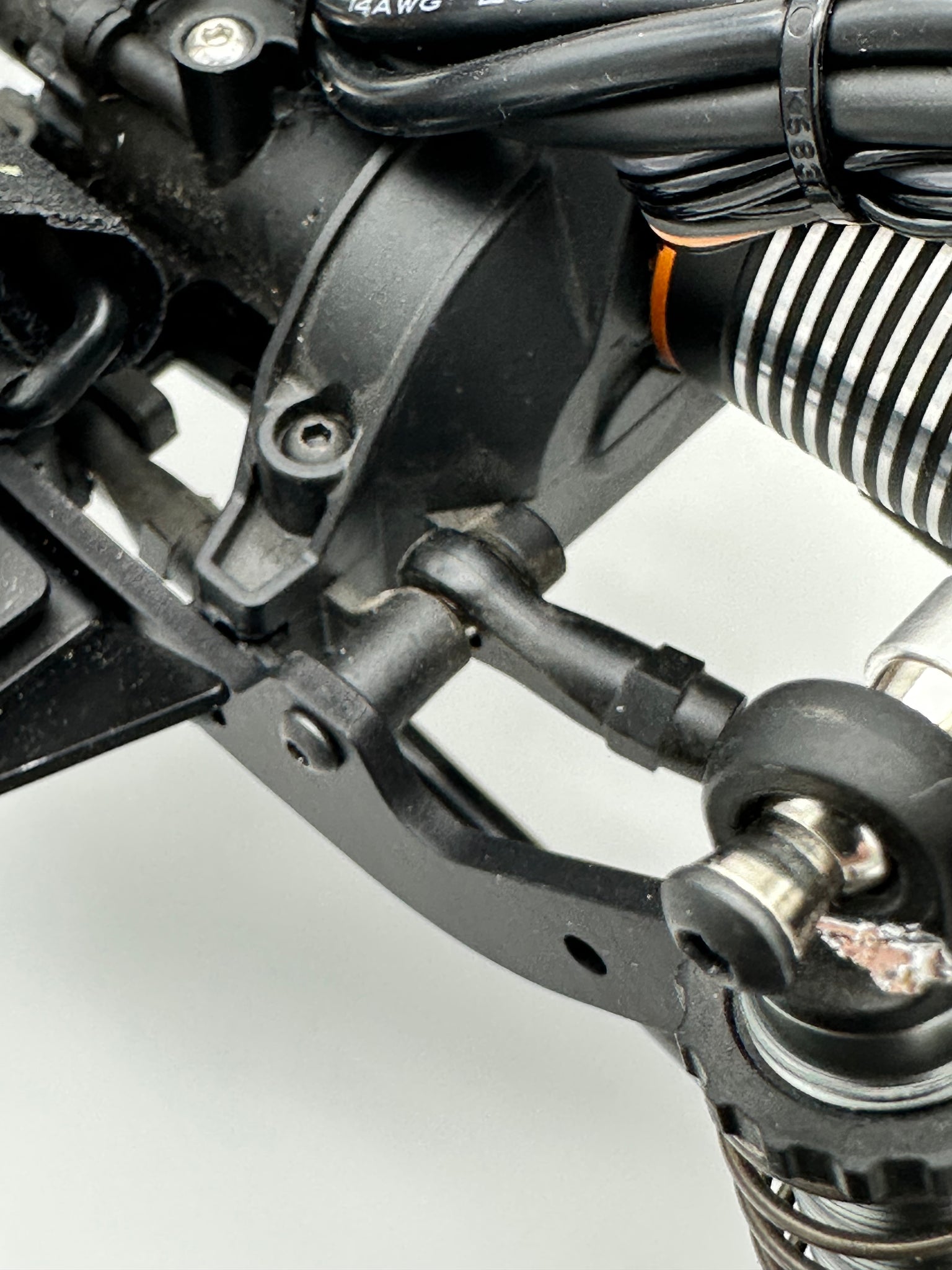

1 Stainless steel custom RPRC pan hard bar mount. NOTE: Flip to the outside for TRX4 Sport builds. See pictures.
1 Rock Pirates RC Sticker Sheet.
Chassis is NOT a belly dragger.

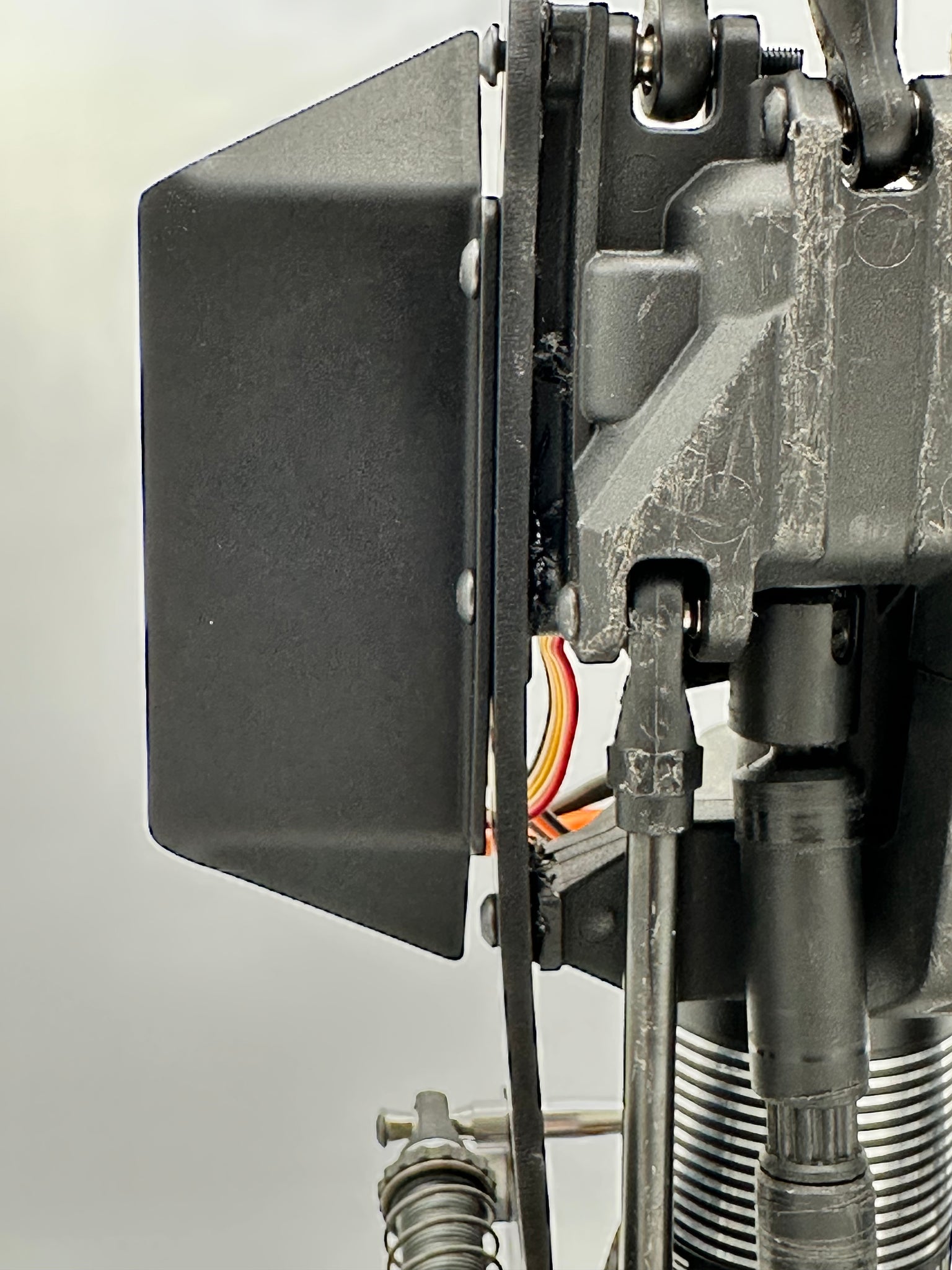

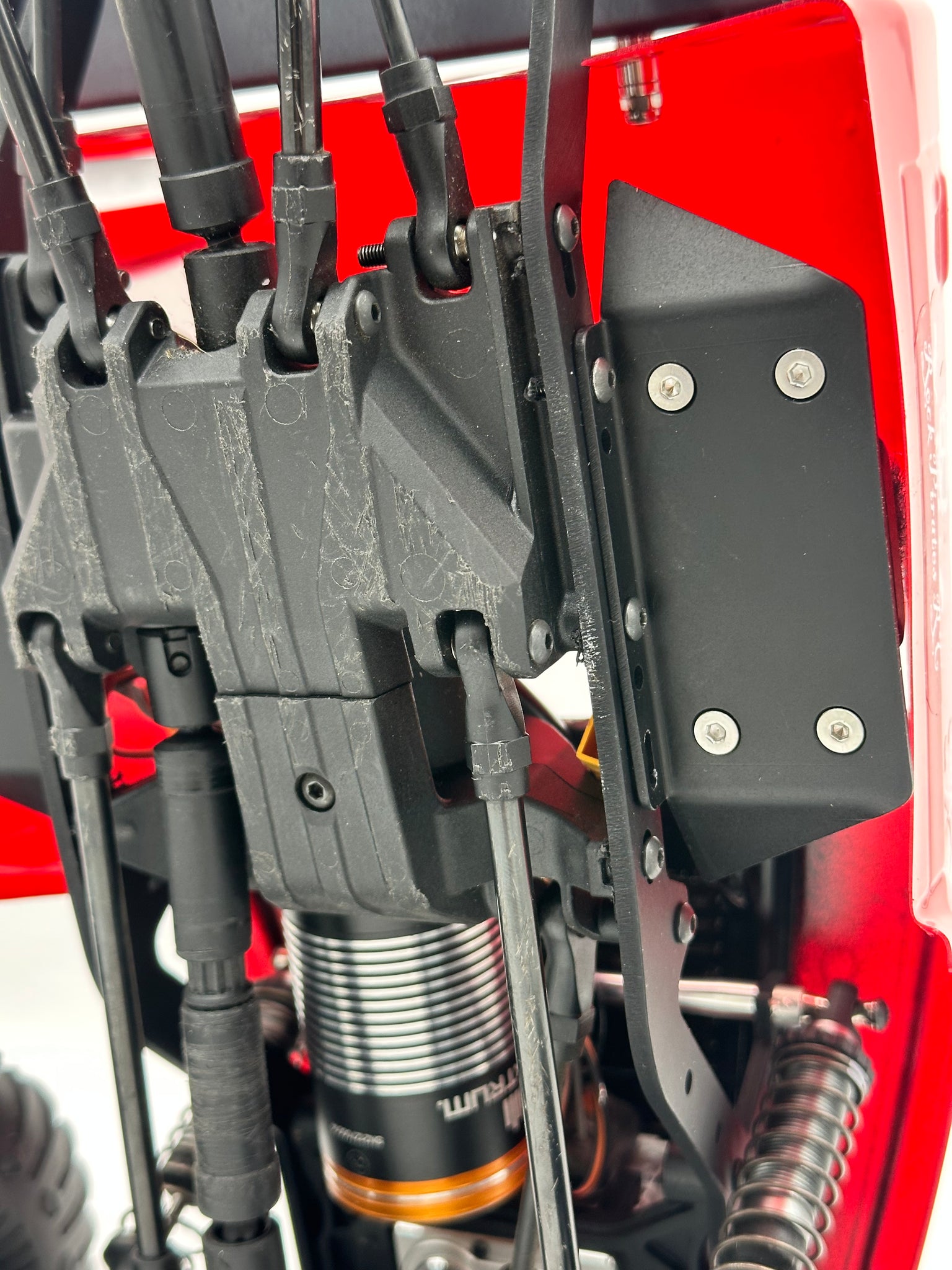

All RPRC sliders will fit this chassis. Some Sliders will require a 3/32" hole to be drilled into the plastic stock skid for mounting.

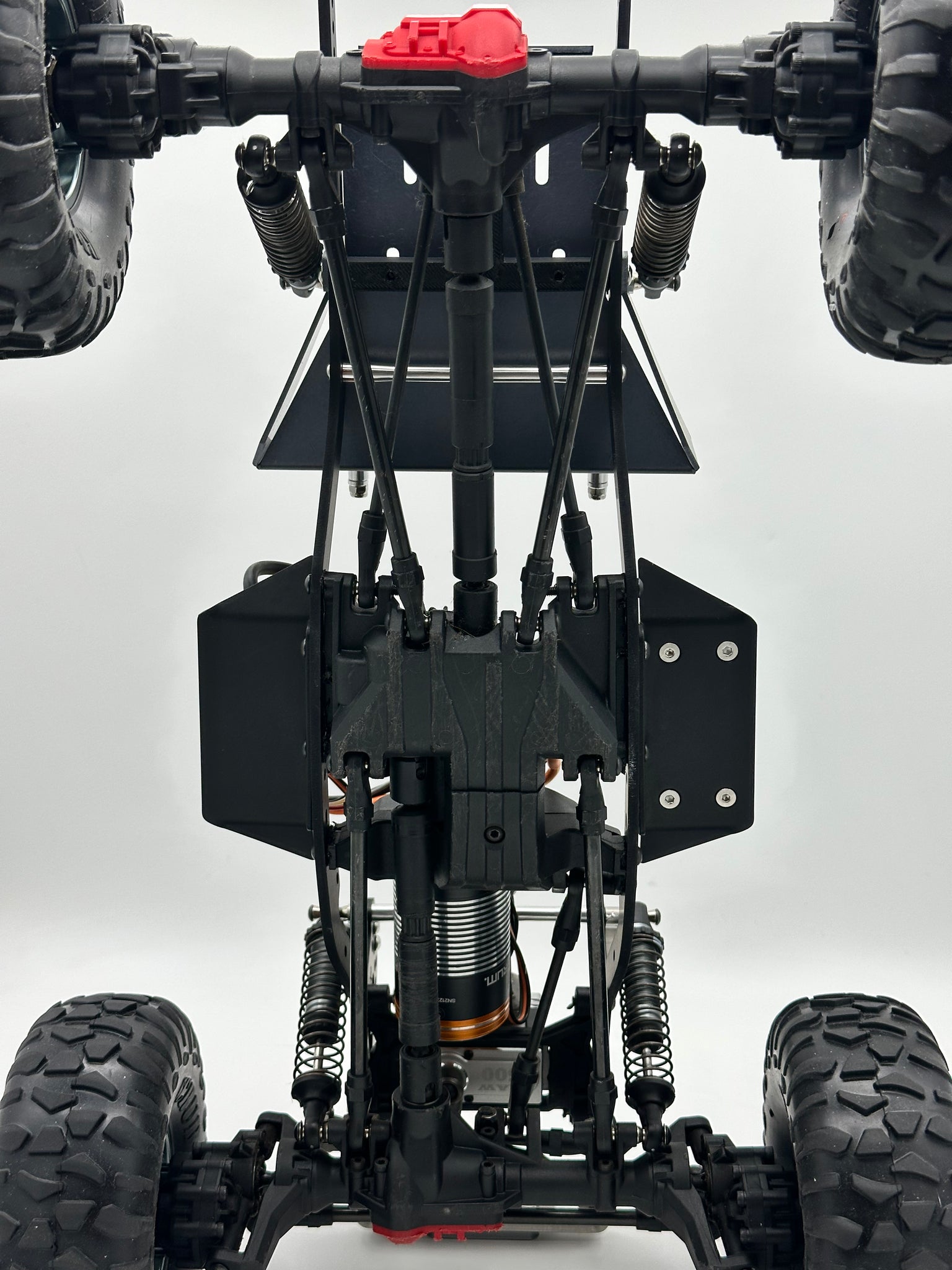

Optimized belly clearance. Note: Do not use a flat skid, use the stock skid.
Low center of gravity.
Optimized full suspension compression front and rear when tuned correctly.

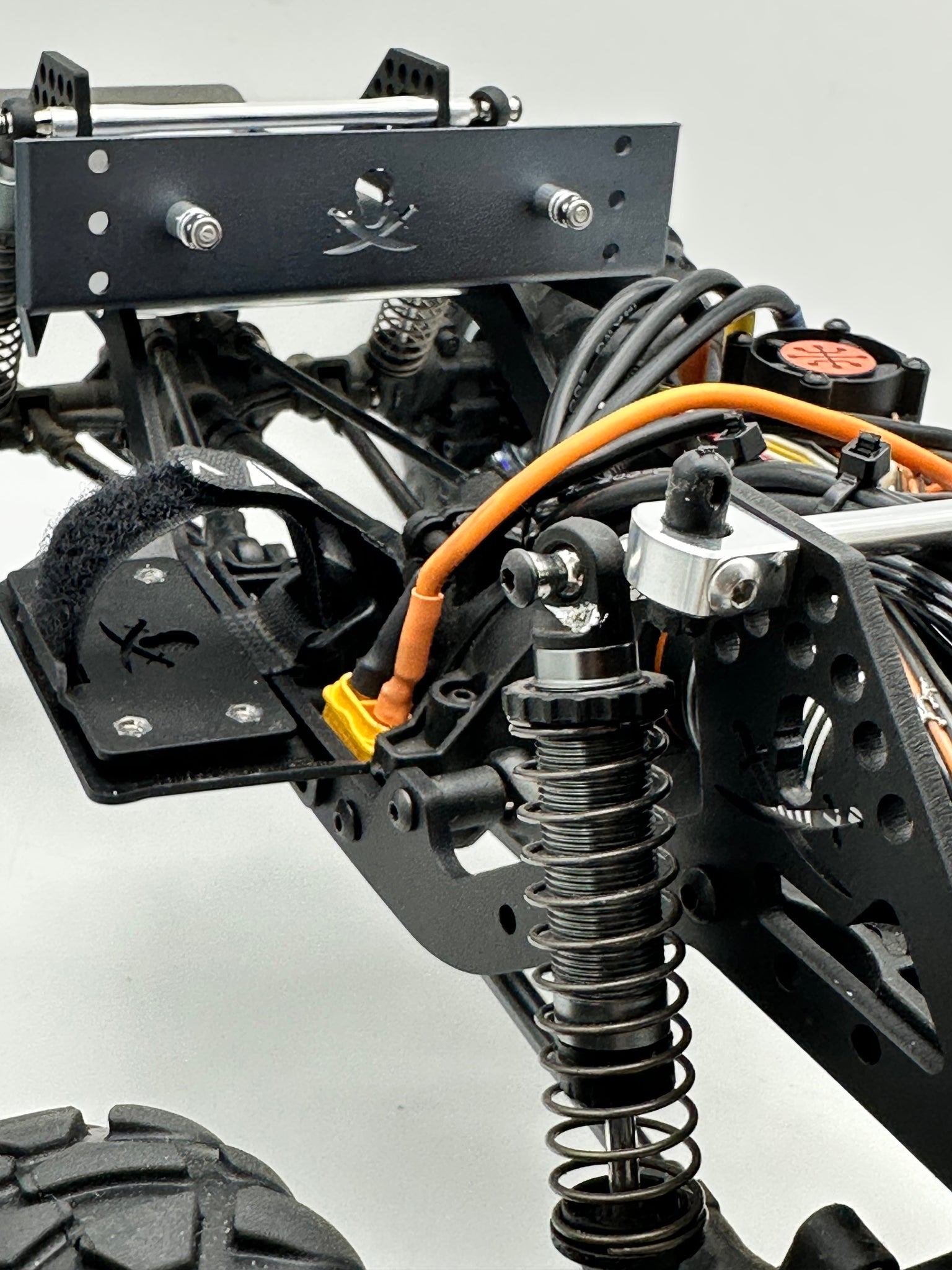

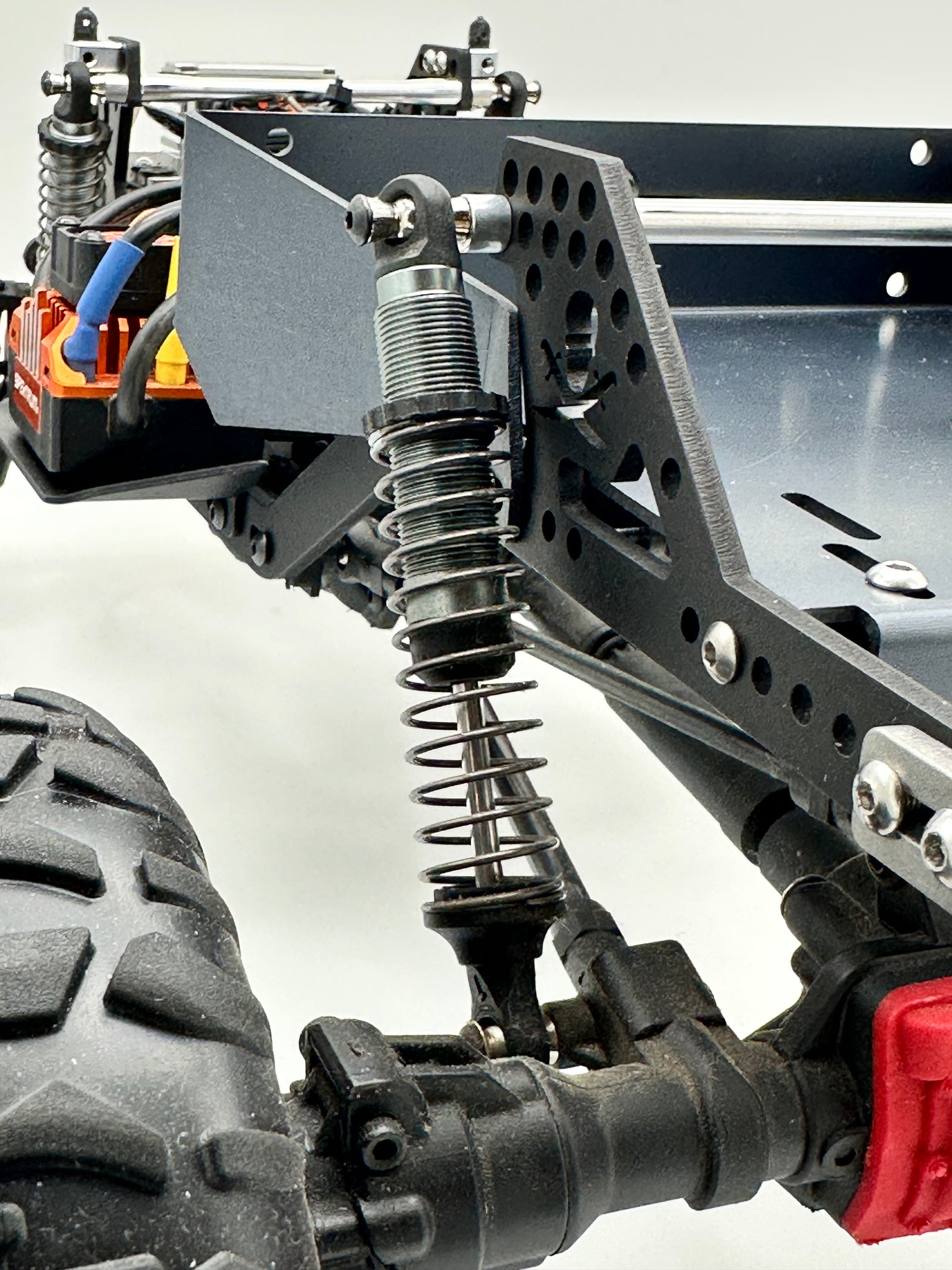

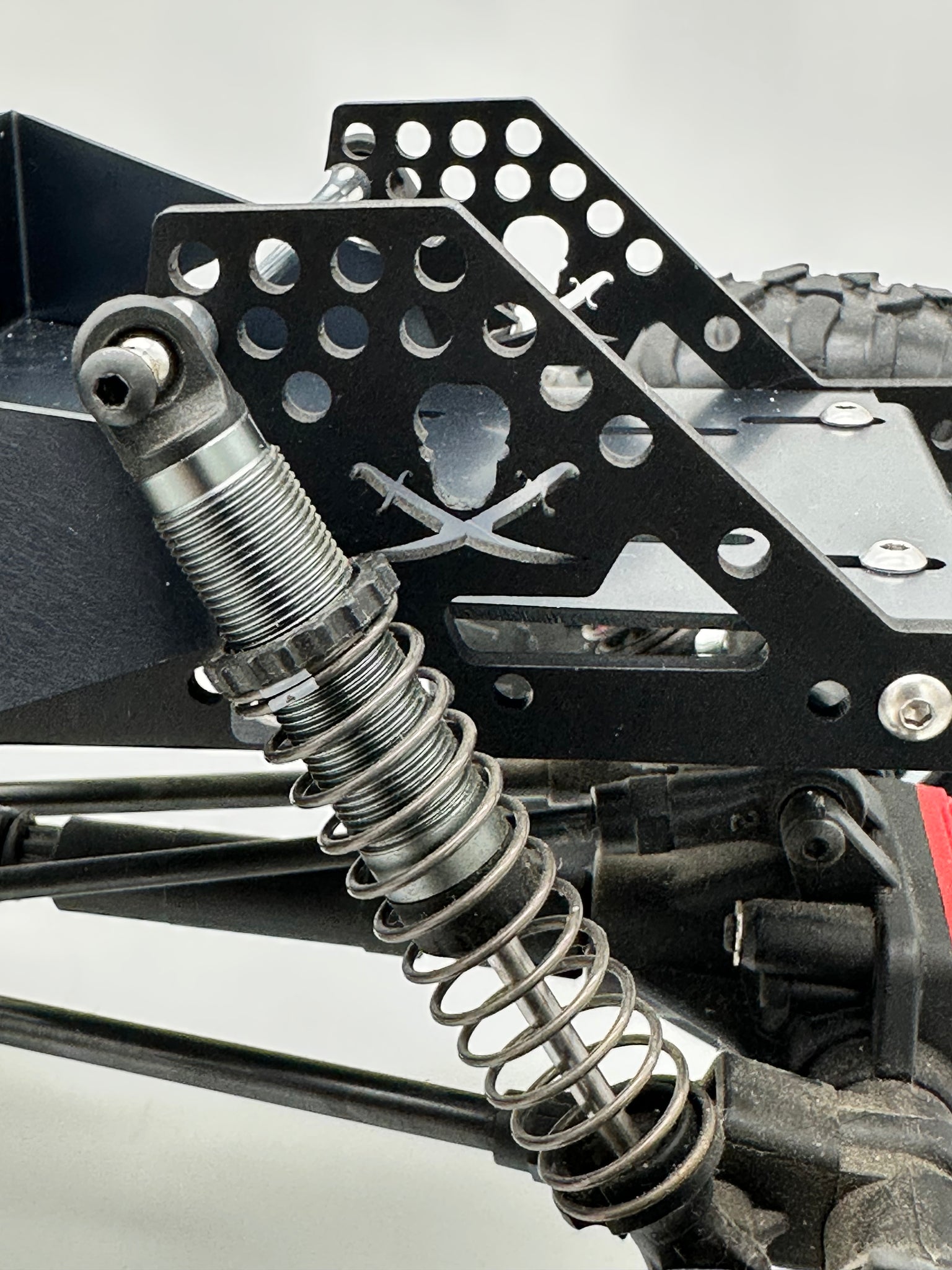

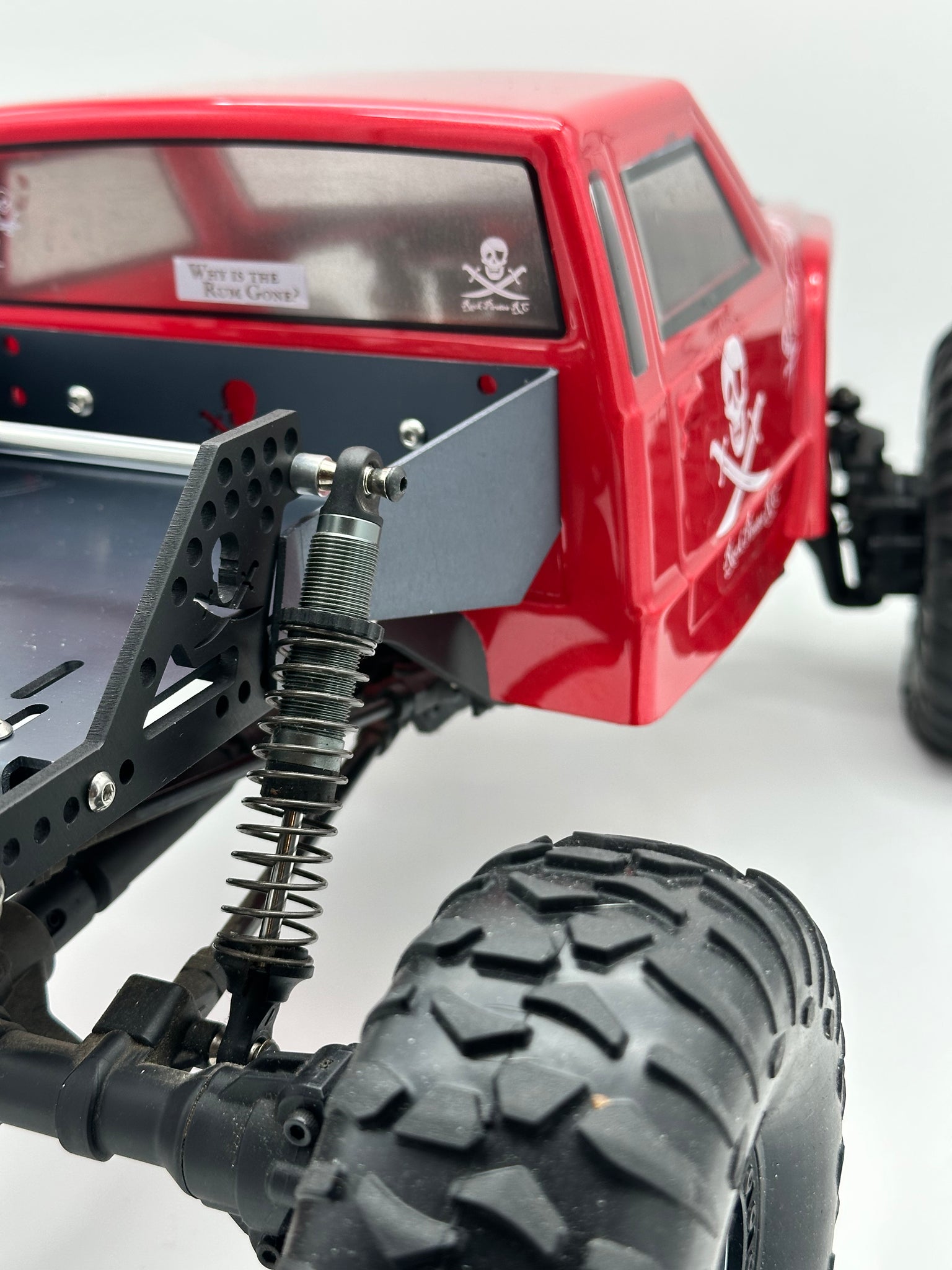

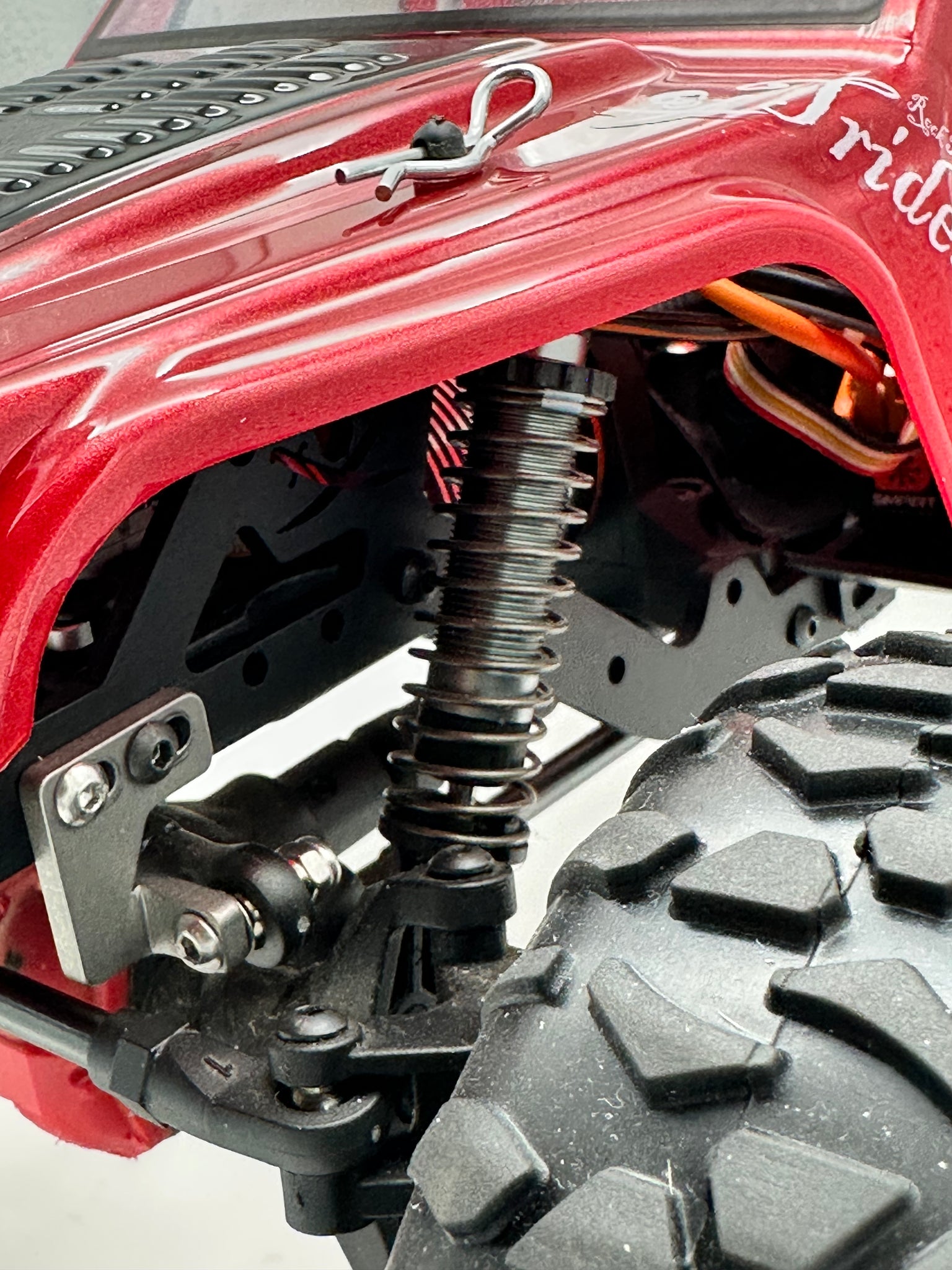

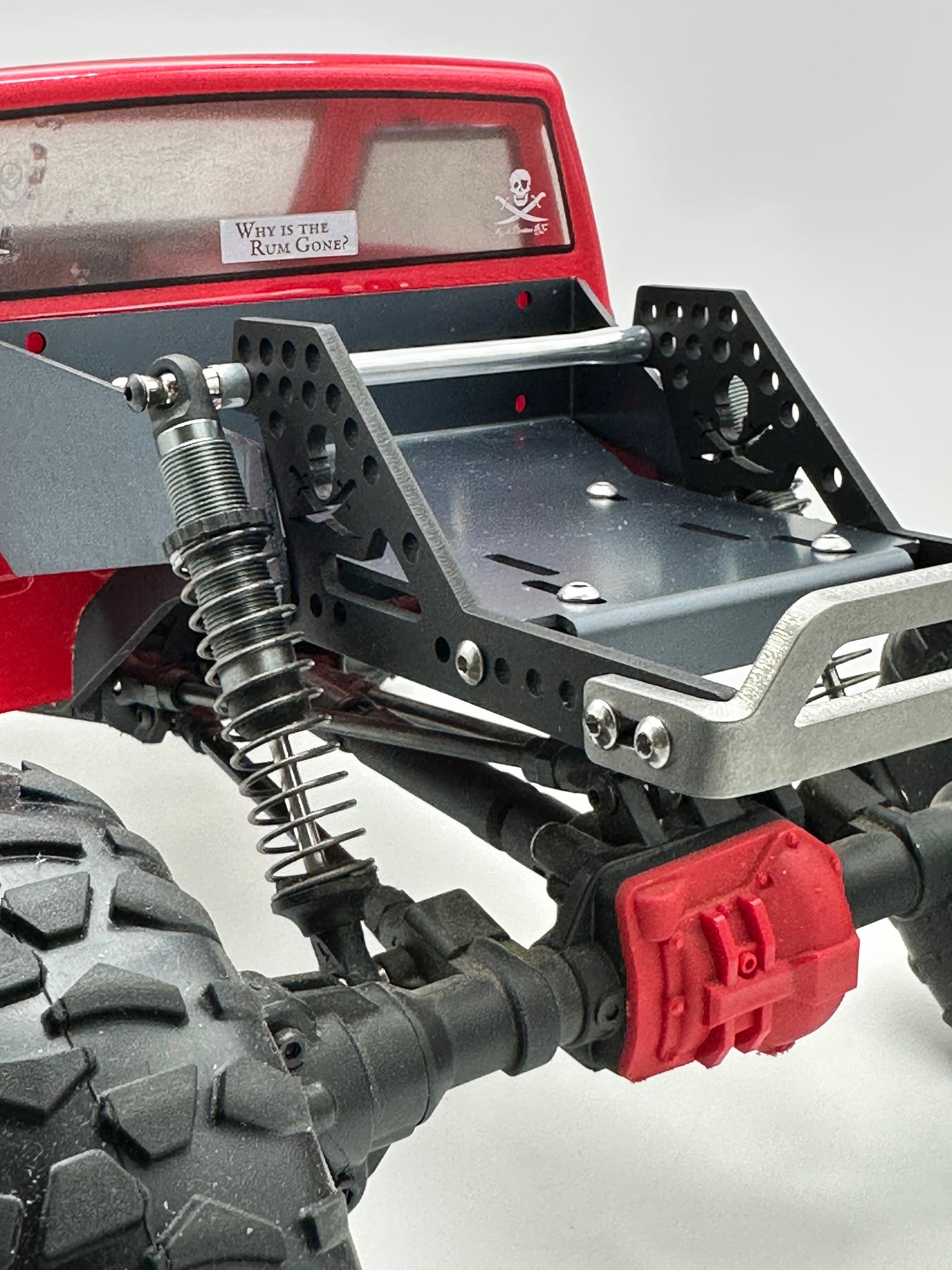

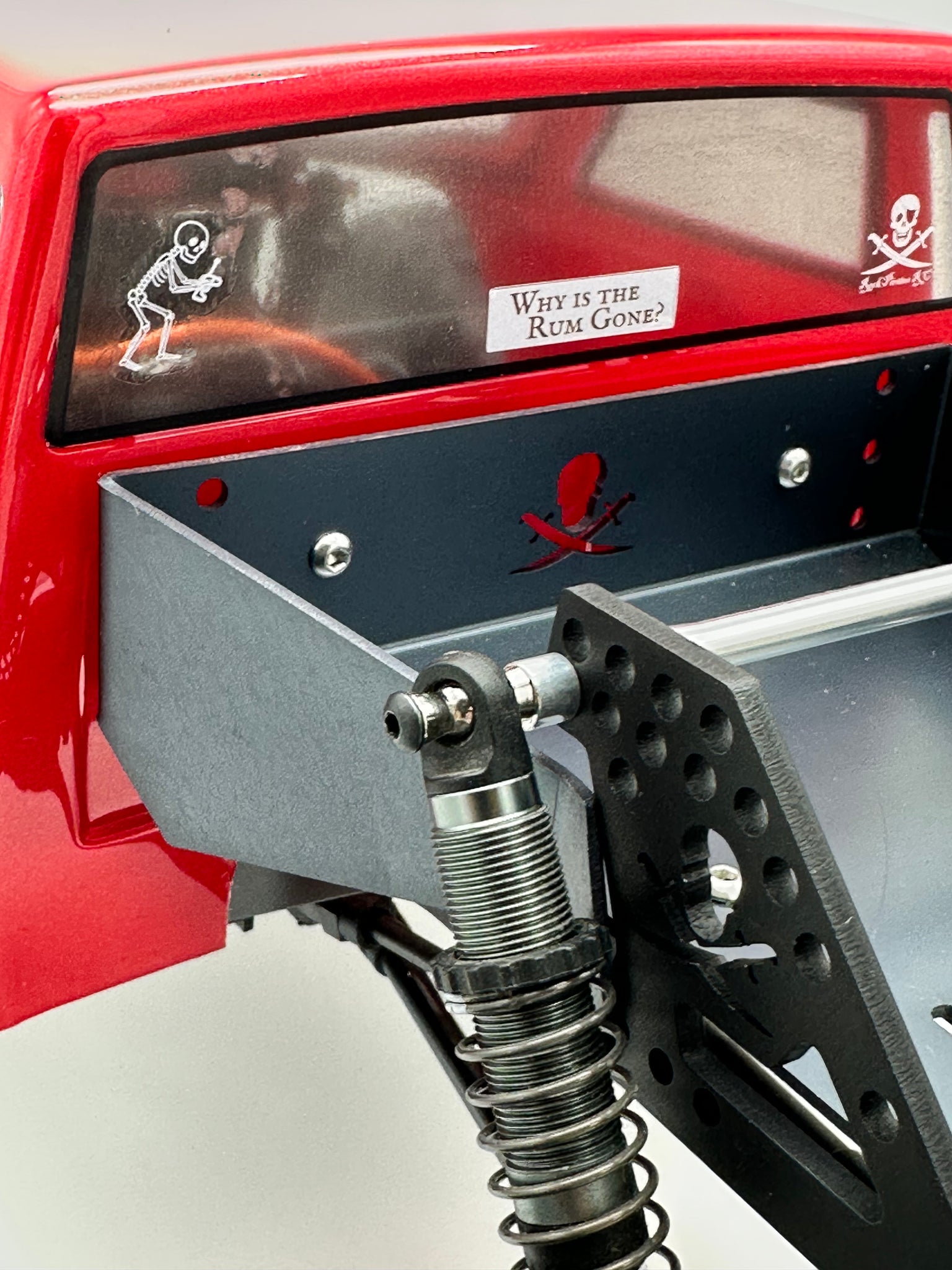

Nine upper shock mounting holes in each shock tower to make any type of setup easy. Top shock holes are intentionally larger for ease of set up. Once tightened there is no play.
Optimized design geometry. (Balance)
* PRPC Parts Popular with this item:
- Body Post Mounts.
- Servo & Shock Spacer Pack.
- Flat Rail Crossmembers (4 Pack).

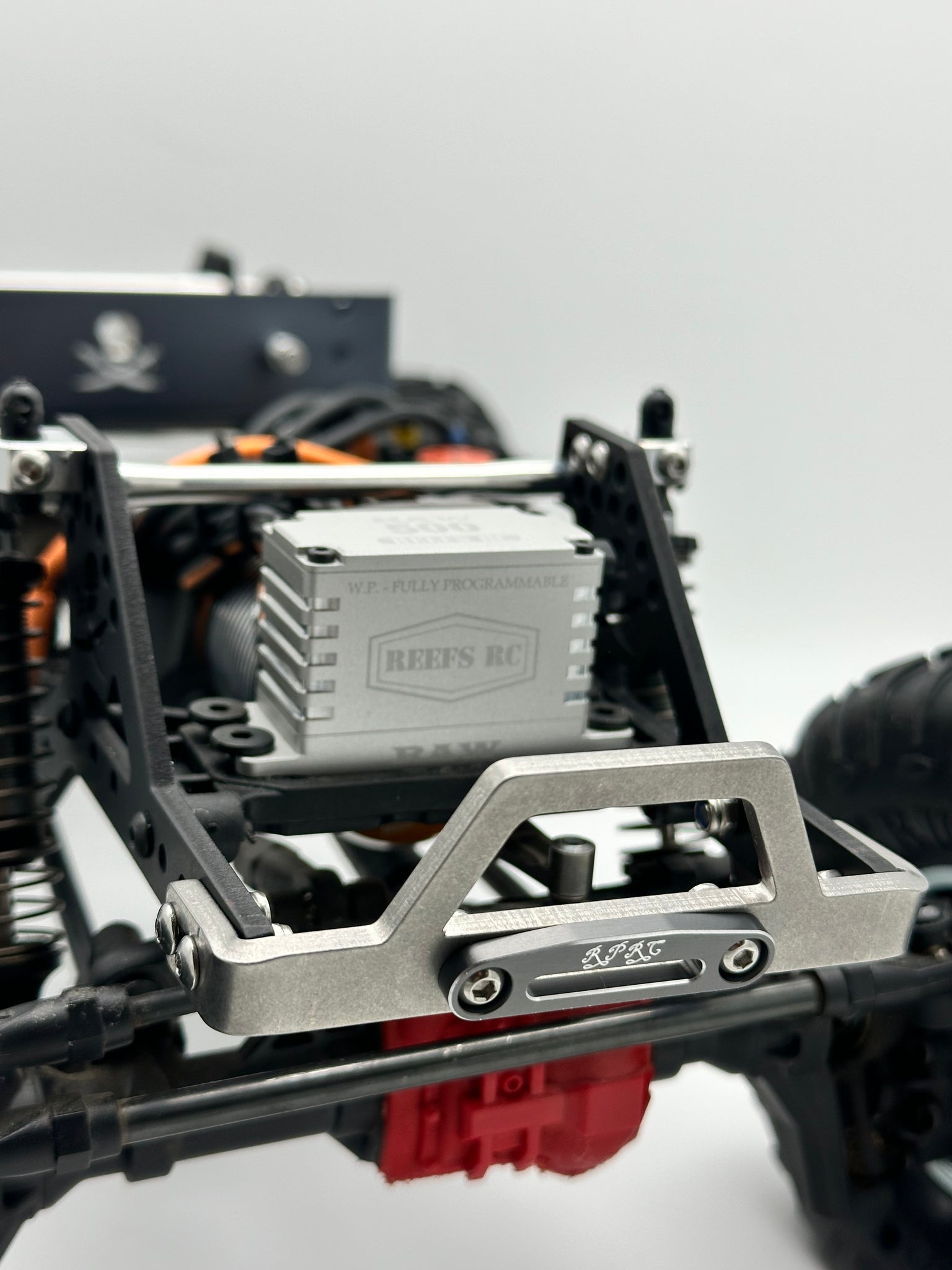

- Front Comp Bumper 3.0 width.

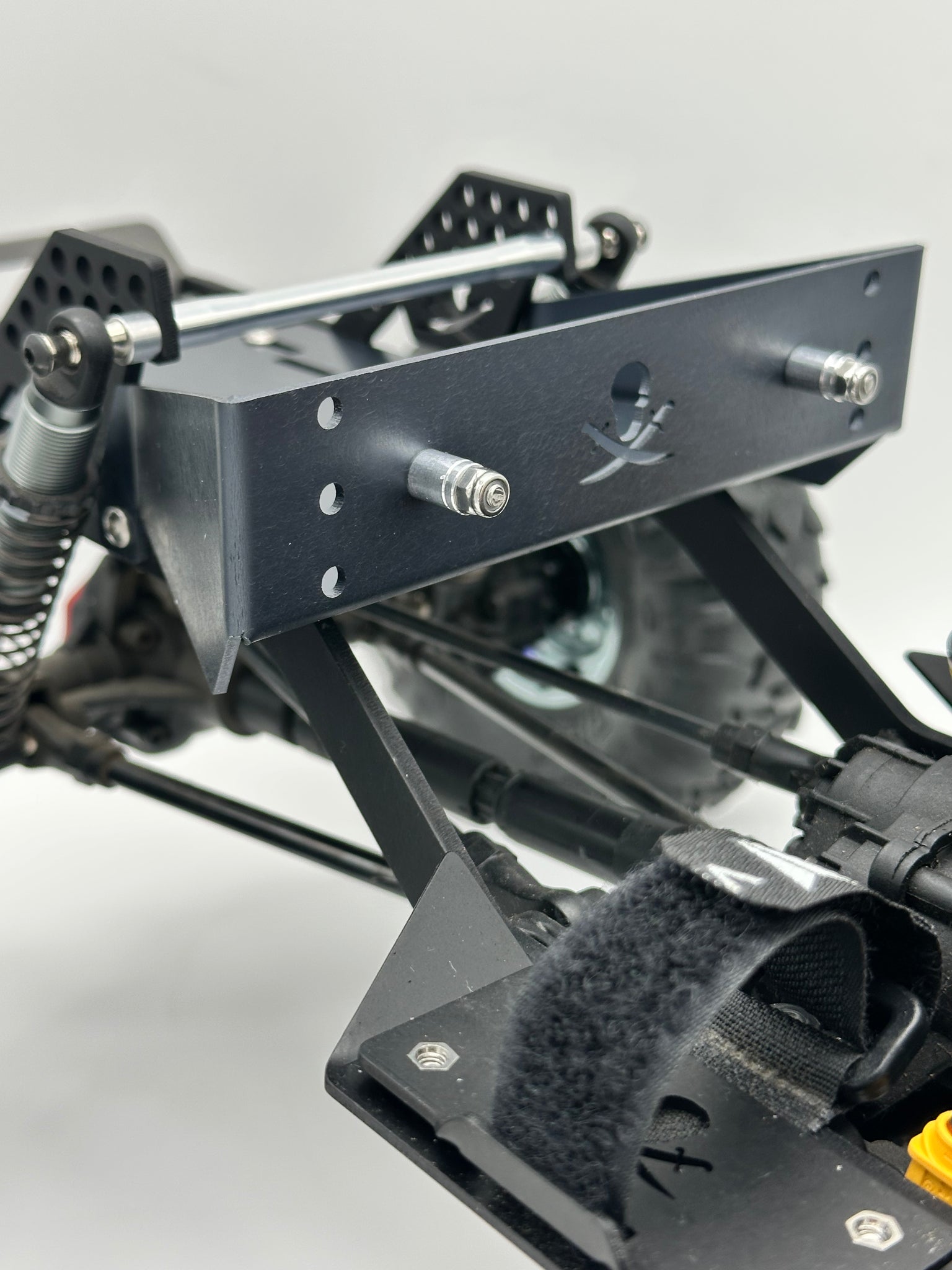

- Rear Comp Bumper 3.16 width.
- RPRC Fairlead.

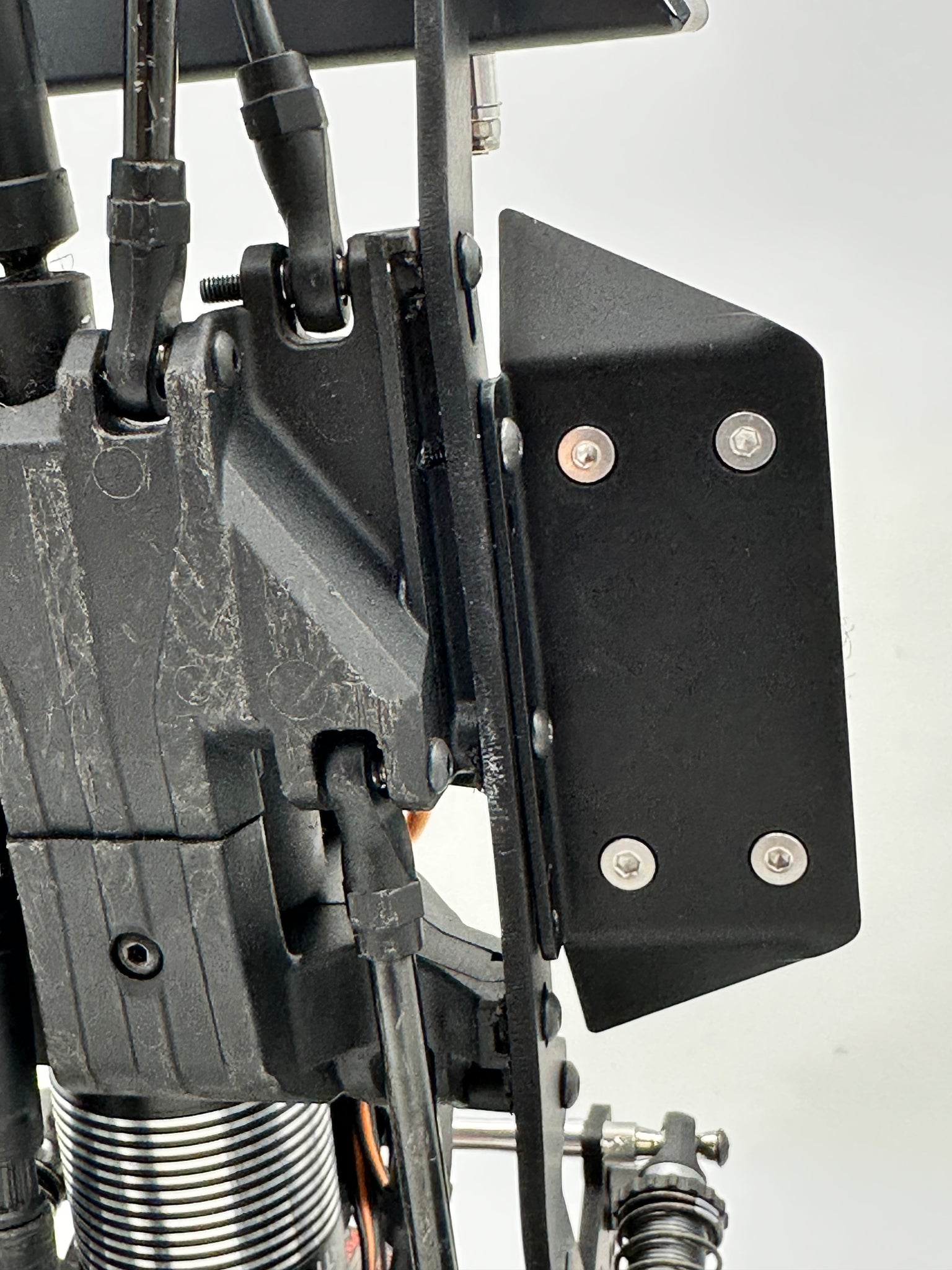

- Rock Sliders (different sizes available for different bodies).
- Battery Tray for TRX4.
- Hardline Bed
- Skeleton Bed

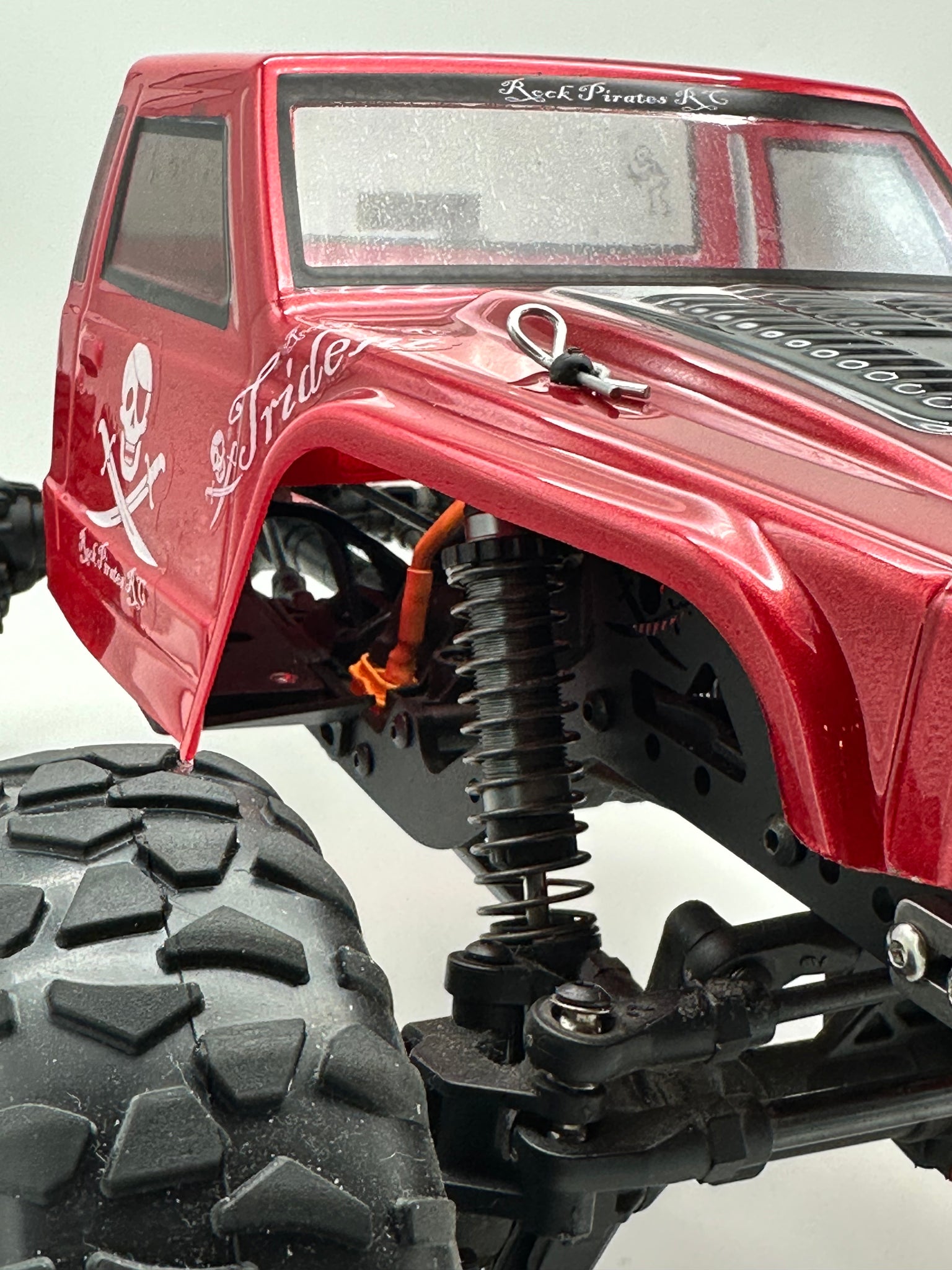

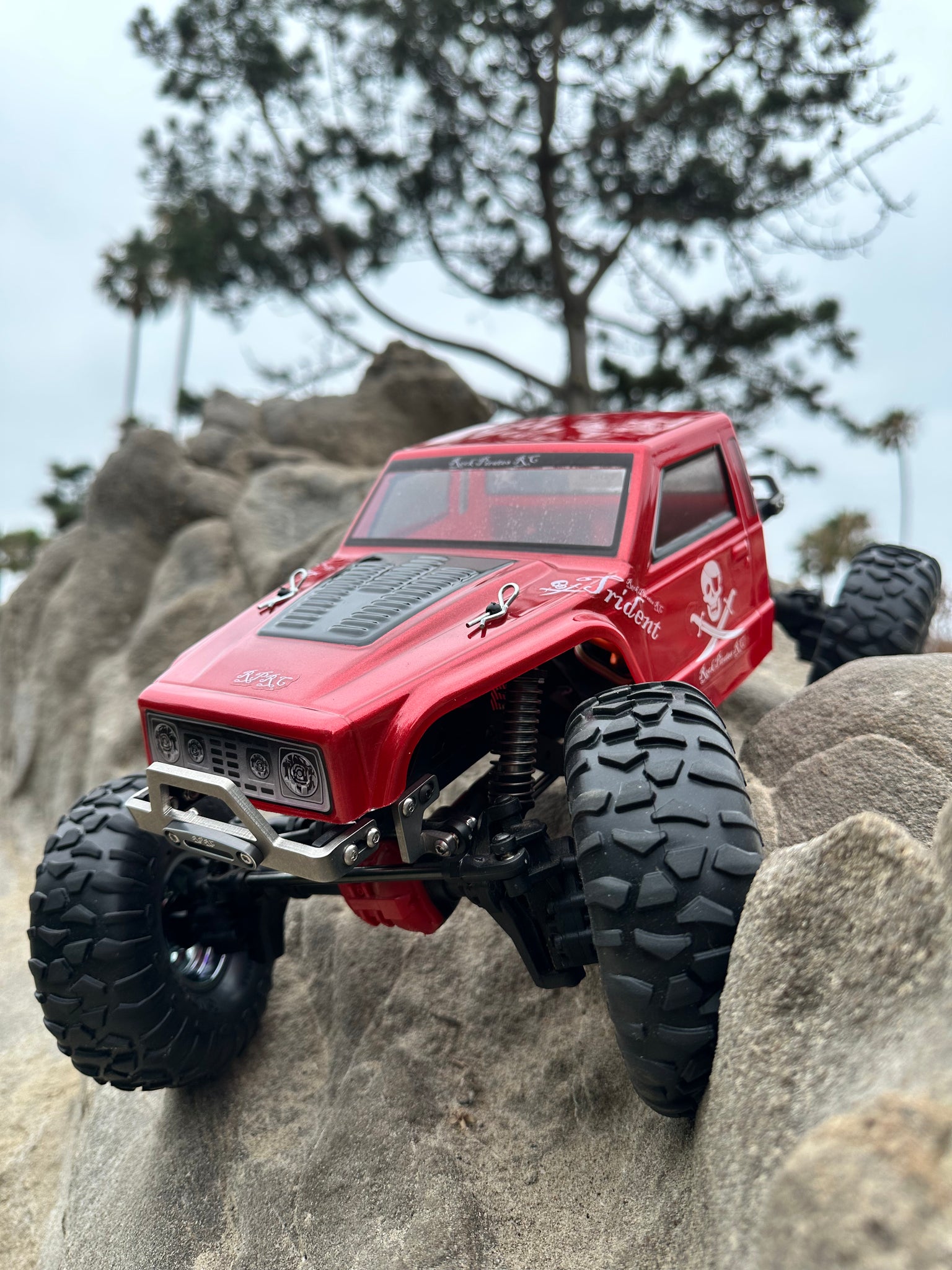

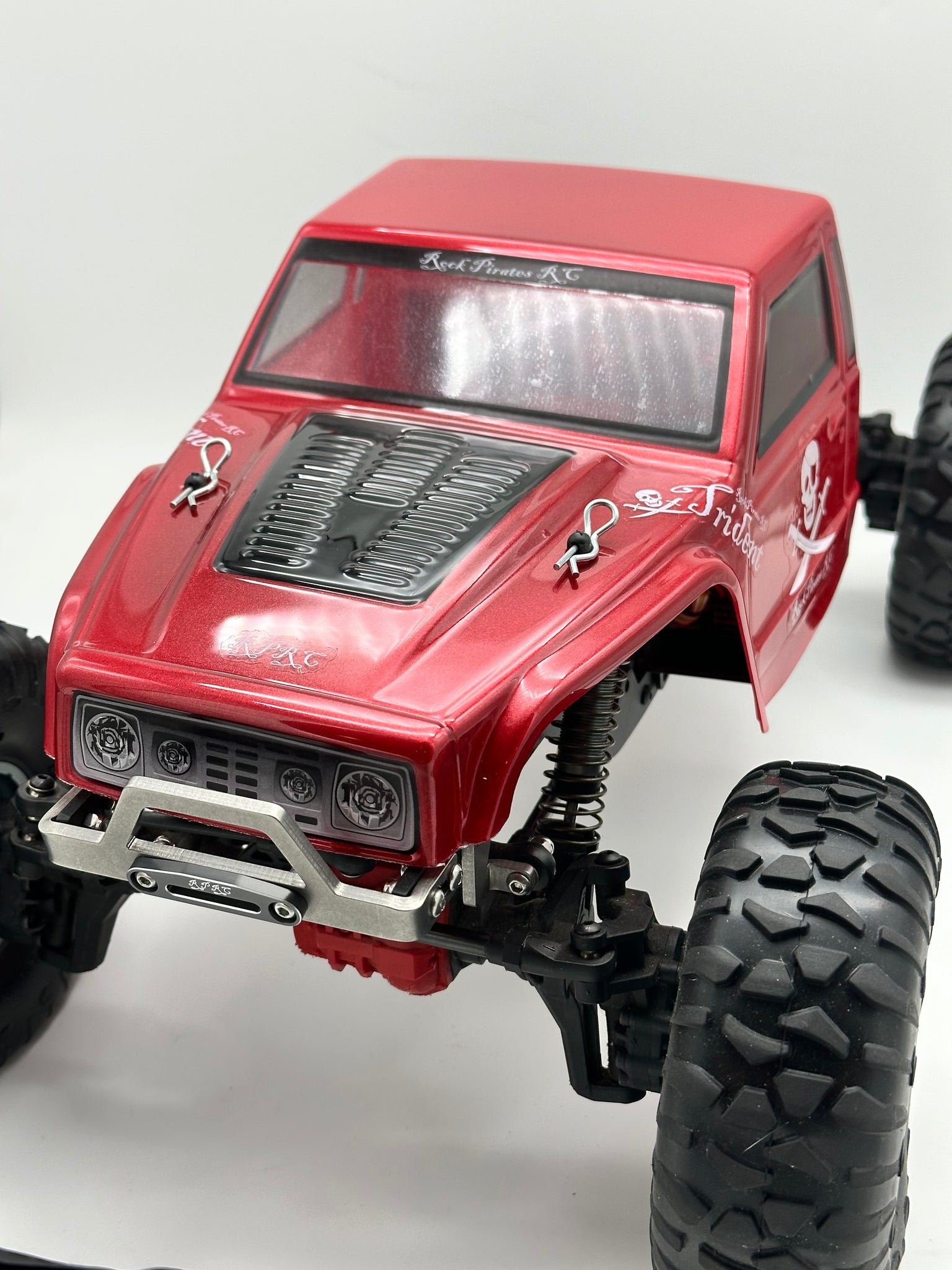

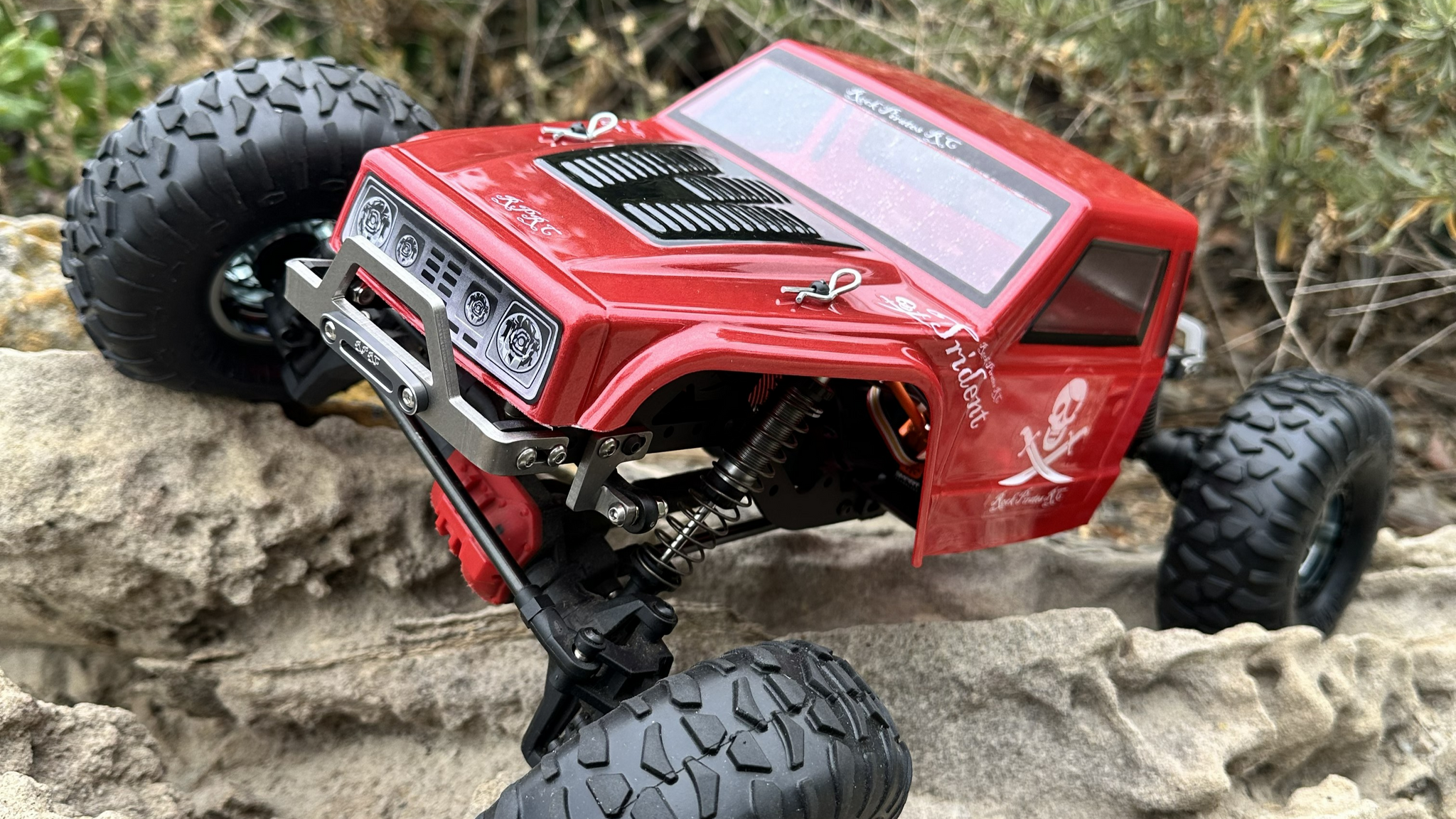

- Trident Body
